Mahr Inductive Probes

Millimar | Inductive probe

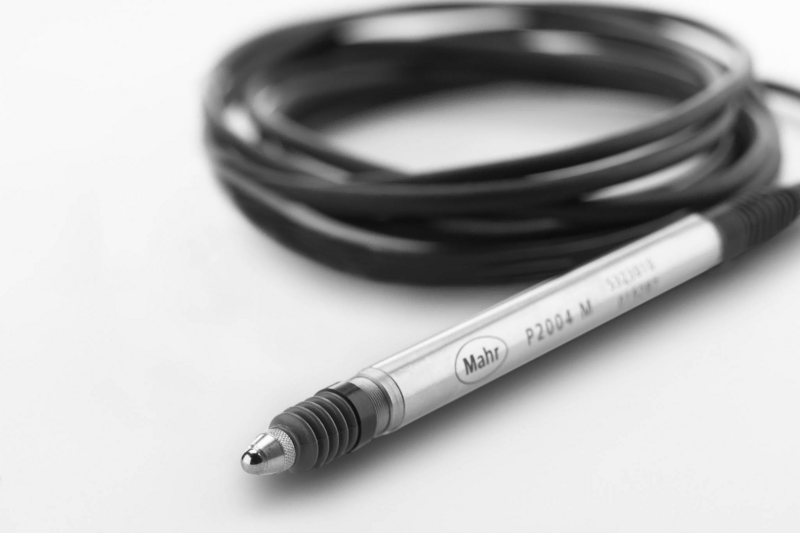

Millimar P2004 M / P2004 T / P2004 U

FEATURES

• Models with or without pneumatic lifter or load
• Measuring pin mounted in rotary stroke bearing
• High linearity over the entire measuring range
• Excellent electromagnetic shielding (EMC)
• All probes can be easily converted from axial to radial by mounting a slip on cap (included)
• Chemical resistance data:
  • Resistant to oil, gasoline, water and aliphatic compounds
  • Moderately resistant to acids, bases, solvents and ozone
• Package contains: instruction manual, cap for radial cable output, spanner for preliminary stroke setting

TECHNICAL DATA

Specification	P2004 M (5323010), P2004 T (5323011), P2004 U (5323013)
Measuring range (mm)	±2 (mm)
Measuring range (inch)	±.079″ (inch)
Distance to upper stop (mm...mm)	+2.2 . . . 4.4
Distance to lower stop (mm...mm)	–2.2 . . . 0
Distance to upper stop (inch...inch)	+.09 ... .173″ (inch)
Distance to lower stop (inch...inch)	–.09 ... 0″ (inch)
Lifter / retraction	Standard model
Measuring force (N)	0.75 N ±0.15 N
Increase in measuring force (N/mm)	0.2 N/mm
Sensitivity deviation (%)	0.3
Repeatability fv (μm)	0.1
Measuring value hysteresis fh (μm)	0.5
Linearity deviation within +/-0.5 mm (μm)	0.4
Linearity deviation within +/- .020″ (inch)	16 μ″
Linearity deviation within +/-1.0 mm (μm)	1.5
Linearity deviation within +/- .039″ (inch)	60 μ″
Linearity deviation within +/-2.0 mm (μm)	3
Linearity deviation within +/- .079″ (inch)	120 μ″
IP protection category	IP 64
Cable length (m)	2.5
Temperature coefficient (μm/°C)	0.15
Compatibility	Mahr VLDT (5323010), Tesa (5323011), Marposs (5323013)
