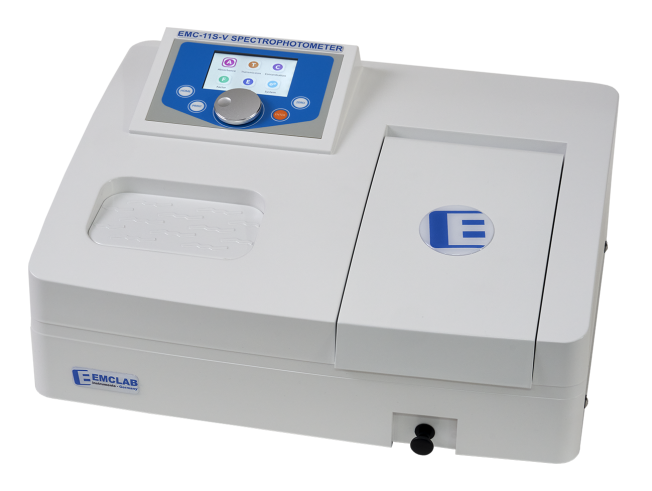

EMC-11S-V Single Beam

UV/VIS Spectrophotometer

EMC-11S-UV

Features:

• Color TFT screen
• Self-check system
• Fast choose wavelength
• Auto Zero and Blank
• Sample compartment for different cell holders
• Incl. PC Software EMC- λ Lambda (Wavelength Measurement, Spectrum Scan, Quantitative Measurement, Kinetic Measurement, DNA/RNA Measurement)
• Incl. EMCLAB Works Calibration Certificate

Our lightest spectrophotometer is especially popular for use in education due to its easy operation and simple functionality. It covers standard photometric and quantitative applications. With the PC software EMC- Lambda, kinetic measurements and wavelength scans can also be performed with the instrument.

Specifications	EMC-11S-V
Wavelength Range	325–1000 nm
Spectral Bandwidth	4 nm
Optical System	Single Beam, grating 1200 lines/mm
Wavelength Accuracy	±2 nm
Wavelength Repeatability	1 nm
Photometric Accuracy	≤±0.5 % T or ±0.004A@1A
Photometric Range	0–200 % T, -0.3 – 3A, 0–9999 conc.
Photometric Repeatability	≤0.2 % T
Photometric Mode	T, A, C, F
Stray Light	0.2 % T
Stability	±0.004A/h@500 nm
Baseline Flatness	±0.001A (200–1000 nm)
Noise	0.003A@500 nm
Detector	Silicone Photodiode
Display	Color TFT screen
Central beam height	15 mm
Standard Cell Holder	4-position cell holder 10×10 mm
Light Source	Tungsten lamp
Output	USB port & Parallel port for printer
Power Requirement	AC 85V~265V 50/60 Hz
Dimensions (L×W×H)	440 × 350 × 200 mm
Weight	8 kg

---

As the authorized distributor of EMCLAB in Indonesia, PT Universal Labora Analitika is ready to support your spectrophotometric analysis needs from product selection to installation and technical service. Contact us now!
