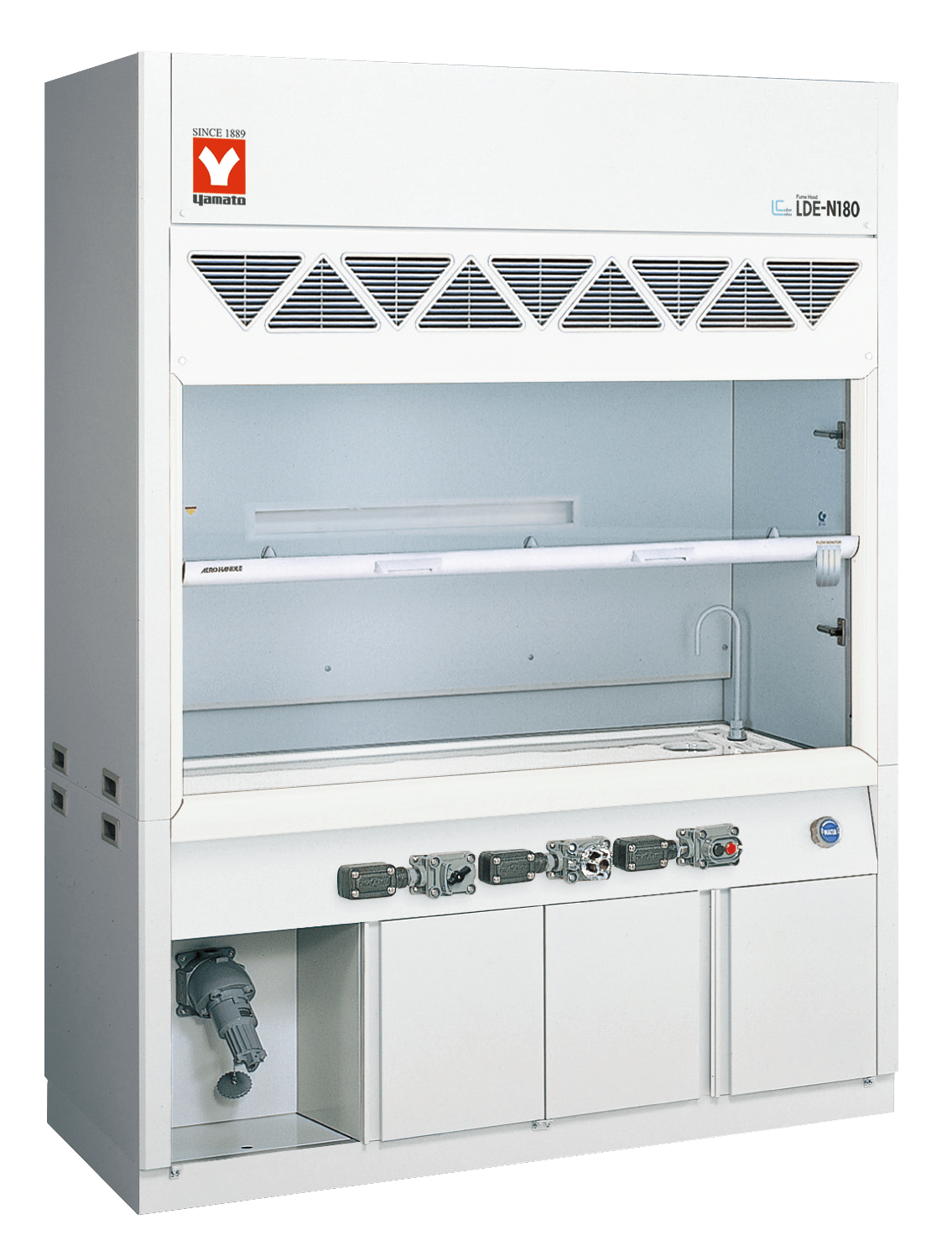

Yamato LDE Series

Fume Hoods | Explosion-proof LDE

Explosion-proof and pressure resistant fume hood developed for safety and ease of operation.

As an explosion-proof and pressure resistant model, this fume hood is designed with multiple considerations for safety and ease of operation.

• The three-phase circuit for operation switches is d2G4, and the single-phase circuit for sockets is d2G4, Exdes II CT5 explosion-proof and pressure resistant specifications.
• It is most suitable for experiments that use a large amount of organic solvents.
• The operation switches and sockets are installed on the front, and the explosion-proof and pressure resistant fluorescent lamps for lighting are built-in.

Common Specifications

Item	LDE Series
Exterior material	Cold-rolled steel plate, surface chemical-resistant powder coating
Interior material	Special board material without asbestos, slit-type buffer plate
Working surface (selection)	Ceramic (S), ceramic steel plate (K)
Glass door	Reinforced glass, 6mm thick, weight-balanced type
Water faucet	1 pc
Socket	AC220V 10A, 1 pc
Electrical system	Three-phase power circuit (only the operation circuit on the fume hood): • Explosion-proof and pressure resistant operation switch d2G4 • Explosion-proof and pressure resistant indicator light d2G4 • Junction box d2G4 Single-phase circuit: • Explosion-proof and pressure resistant fluorescent lamp Exdes II CT5 • Explosion-proof and pressure resistant toggle switch d2G4 • Explosion-proof and pressure resistant socket d2G4 • Junction box d2G4

Specifications

Model	LDE-120	LDE-150	LDE-180
External dimensions (D×H×W)	750×2400×1200 mm	750×2400×1500 mm	750×2400×1800 mm
Weight	Approx. 300kg	Approx. 340kg	Approx. 380kg
Exhaust air volume	28 m³/min	37 m³/min	45 m³/min
Internal static pressure	127 Pa (13 mmH₂O)	127 Pa (13 mmH₂O)	127 Pa (13 mmH₂O)

---
