Compression and bending testing machines for concrete block products and (fibre) reinforced concrete

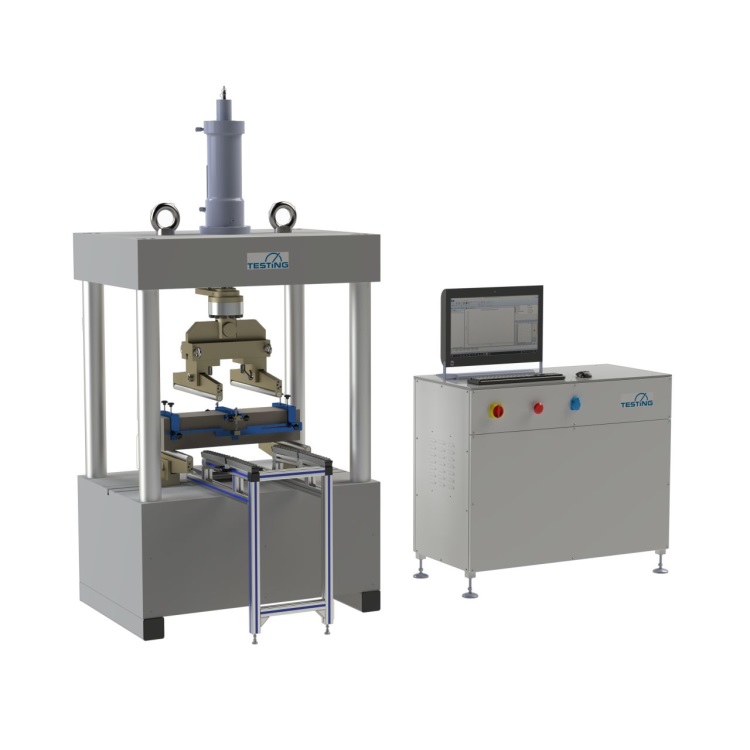

Bending testing machine 300kN

The bending testing machine is suitable for bending tensile strength tests of various steel fibre concretes, concrete beams and shotcrete. A position measuring system is installed in the cylinder by default. The massive steel frame is extremely stiff, the columns are tensioned without any play. High accuracy class 1 according to DIN EN 7500-1 in a very wide measuring range.

Norms: DAfStb Guideline / DBV annex, EN 14651- CMOD, EN 14488-3, EN 14888-5, EN 12390-5, SIA 162/6, ASTM C1550, ASTM C1609, ASTM C1399, Barcelona Test (and many more, if necessary) - Accessories required

Other force ranges:

• 22.1403.S1-SV-i20: 100 kN
• 22.1402.S1-SV-i20: 200 kN

Technical specifications

• Frame type: 4-column frame
• Force display range: 0 - 300 kN
• Force measuring range: 3 - 300 kN, class 1
• Stroke: 250 mm
• Distance between columns: Front 960 mm / Side 610 mm
• Bending roll length: 510 mm
• Bending roll diameter: Ø 30 mm
• Distance between upper bending rolls: 75 - 340 mm
• Distance between lower bending rolls: 70 - 1020 mm

Control Unit

Doli EDC provides fully automated experimental procedures with predetermined rate of loading, force controlled tests (deformation and displacement controlled tests require further accessories), automatic break detection.

Safety

A large area of the testing machine can be equipped optionally with an impact-resistant, transparent test room protection made of polycarbonate.

Dimensions

• Test frame: (W x D x H) 1200 x 850 x 2450 mm
• Weight: approx. 4300 kg
• Control cabinet: (W x D x H) 1200 x 570 x 1040 mm
• Weight: approx. 350 kg
• 3 ~ 400 V / 50 Hz - 1.5 kW

---

For more information or to request a quotation, please contact PT Universal Labora Analitika, the official distributor of Testing GmbH Germany in Indonesia. We’re ready to support your testing needs with expert consultation and full-service assistance.
