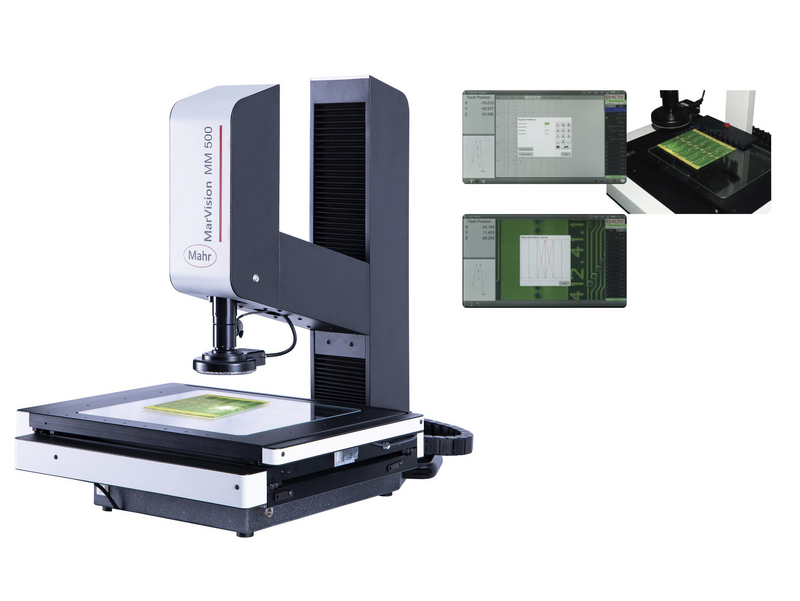

MarVision MM 500 CNC

Ideal for fast measurement

The MarVision MM 500 inspects, for example, turned, milled, punched and bent parts, plastic parts or electronic circuit boards. The measuring microscope uses automatic edge detection to determine geometric elements such as points, straight lines, circles, distances, angles or intersections on these workpieces without contact. Thanks to the optical incremental measuring system, it offers outstanding accuracy and reliability. In addition, its color camera captures particularly high-contrast images.

Features

• Integrated color camera
• Motorized zoom lens (0.7x - 4.5x) with coaxial illumination
• LED ring light: 1 ring and 4 segments each individually switchable and dimmable
• LED transmitted light: Dimmable
• Pointer for position finding
• Massive base made of hard granite
• Stable steel cross table, precision-mounted
• Quick and fine adjustment of the axes
• Excellent accuracy and reliability thanks to optical incremental scale

Operating and display unit M3-software with touchscreen PC

• 23" touchscreen with keyboard and mouse
• Opperating system Windows
• Operation via Multi-Touch screen or with mouse / keyboard
• M3-Software
• Large video image
• Reference / actual evaluation with tolerances
• Record output with company logo
• Graphic display with dimensioning
• Statistics

Applications

Measurement or determination of geometric elements (point, straight line, circle, distance, intersection point, etc.) by automatic edge detection, e.g. on punched and bent components, plastic components, and circuit boards.

Technical Data

Specifications	MarVision MM500 CNC
Max. height of test piece	200 mm
Energy supply	230 V/115 V; 50/60 Hz
Measuring system execution	Built-in incremental scale
Measuring range X/Y in mm	200/100 mm
Measuring system - E1 X/Y in µm	1.9 + (L/100)
Measuring system - E2 XY in µm	2.9 + (L/100)
Measuring system - resolution in mm	0.001 mm
Dimensions in mm	445 x 463 x 800
Package contains	M3 software with touchscreen PC, instruction manual, Mahr calibration certificate
Magnification	35 - 225x
Illumination	LED back and front illumination, adjustable
Size of table in mm	370 x 210 mm
Table load max.	20 kg
