Yamato ADP Series

Vacuum Ovens | Economical, Table Type

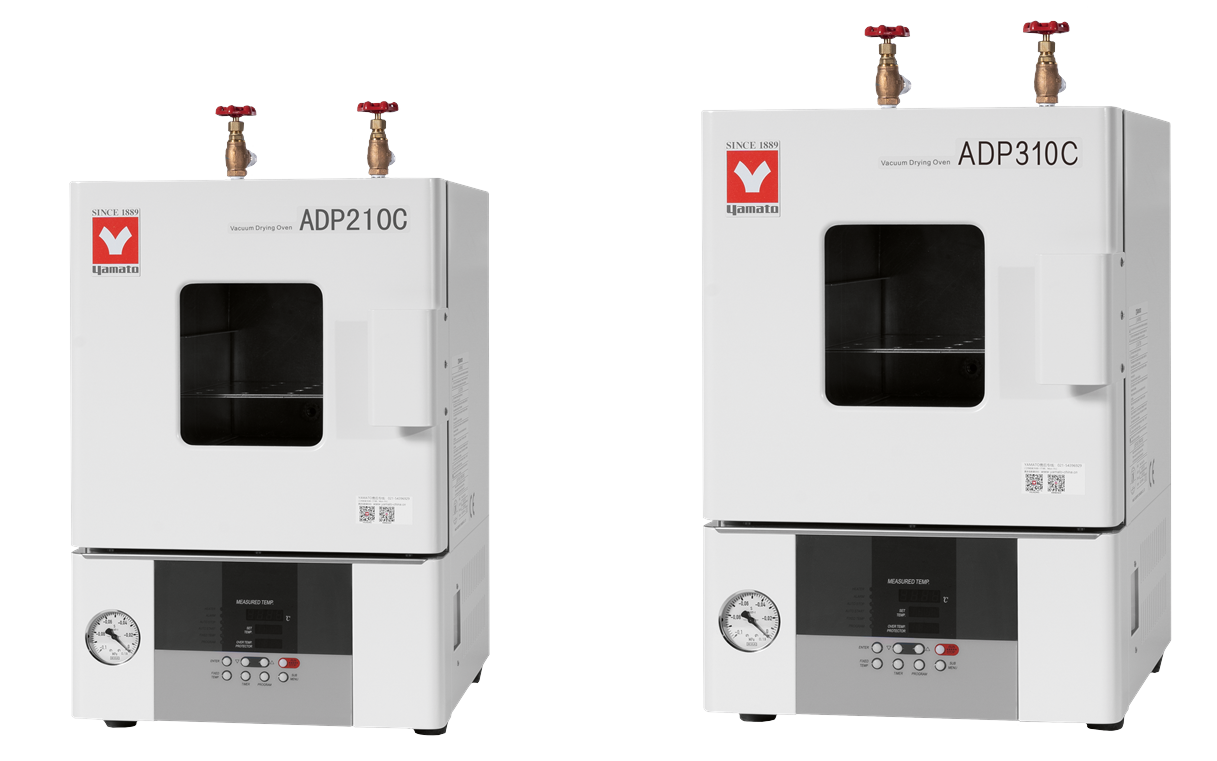

ADP210C/310C

Vacuum drying oven with enhanced and cost-effectiveness features.

Features

• The door sealing strip is made of silicone in one piece, ensuring sealing performance. Easy operation allows for fixed temp. operation, program operation, rapid auto stop, auto stop, and auto start.
• Digital settings can be achieved through a dedicated operation function menu key and ▲ ▲keys. Able to set overheating protection, deviation correction, and key lock.

Safety

• Equipped with self-diagnostic circuit (temperature sensor anomaly, heater disconnection protection, automatic overheating prevention, SSR short-circuit protection), overheating prevention, overcurrent leakage protection, key lock safety and other safety functions.
• For safety, a protective panel made of resin is installed on the viewing window.

Shared Specifications

Models	ADP Series Specification
System	Pressure reduction – wall heating
Operating temp. range	40–240℃
Operating pressure range	101-0.1KPa (760-1Torr)
Temp. fluctuation (GB std)	±0.5℃ (at 200℃)
Temp. adjusting accuracy	±1.5℃ (at 200℃)
Interior material	Stainless steel plate
Exterior material	Cold rolled steel plate with chemical proofing coating
Insulating material	Glass fiber
Heating method	Heating on the external wall
Viewing window	Tempered glass + safety protection resin panel
Vacuum gauge	Pointer type, −100 ~ 0 KPa
Temp. control method	PID control
Temp. setting method	Digital setting via ▲▼ keys
Temp. display method	Achieved: Green 4-digit LED display / Setting: Red 4-digit LED display
Timer	1 min–99 h 59 min and 100–999 h 50 min (including timer waiting)
Operation functions	Fixed temp. operation, auto start, quick auto stop, program operation
Additional functions	Deviation correction, key lock, power failure compensation
Heater circuit control	SSR drive
Sensors	Temperature controller: Pt100 thermistor; overheating protection: liquid expansion temperature controller
Safety device	Self-diagnostic circuit (temperature sensor anomaly, heater disconnection protection, automatic overheating preventer, SSR short-circuit), overheating preventer, overcurrent leakage protection, key lock functions
Exhaust vent	External diameter 18 mm
Air intake	External diameter 8 mm

Difference Between Models

Models	ADP210C	ADP310C
Max. temp. reaching time	Approx. 70 min	Approx. 100 min
Heating power	0.68 KW	1.05 KW
Internal dimensions (mm)	200×250×200	300×300×300
External dimensions (mm)	400×412×603	500×465×705
Internal capacity	10 L	27 L
Shelf layers	2 layers (fixed)	3 layers (fixed)
Shelf interval	65 mm	75 mm
Power supply (50/60Hz) rated current	AC220V 3.5A	AC220V 5A
Weight	Approx. 30 kg	Approx. 45 kg

---

As an authorized distributor of Yamato Scientific in Indonesia, PT Universal Labora Analitika proudly provides the full range of ADP ovens for laboratories seeking energy-efficient, high-performance thermal solutions. Contact us for the detailed product catalog.
