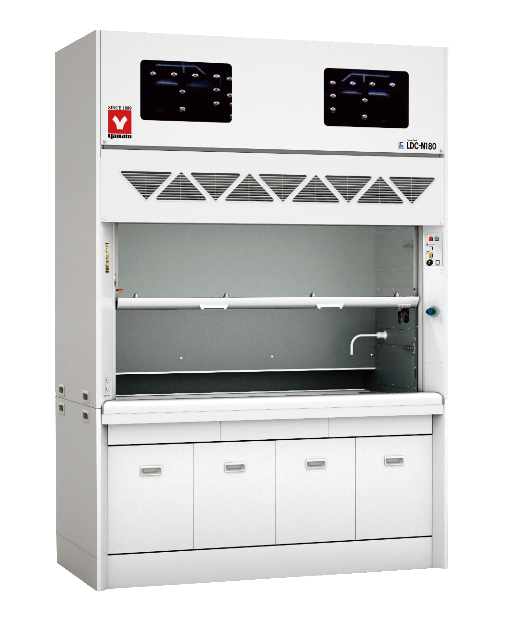

Yamato LDC1 Series

Fume Hoods | Environmental Type, Multi-Stage Packed Tower Method

LDC1

Environmental fume hood with a multi-stage packing method exhaust treatment device that processes harmful gases.

Adopting a multi-stage packed tower method, it achieves higher gas-liquid contact efficiency and reduces pressure loss, improving maintainability, and effectively removes inorganic gases through chemical washing.

• By integrating the treatment device into the fume hood, it saves space and reduces overall setup costs.
• By achieving low pressure loss through proper wind tunnel design, it aims to save energy and reduce operational costs.
• The circulating water bath can be pulled out, and there is a piping inspection port on the back, making it easy to access. Additionally, a filter is installed on the pump circulation system, improving maintainability.
• Equipped with door fall brake block, exhaust delay timer, and washing tower water level abnormality sensor, it creates a safer research environment.

Common Specifications

Item	LDC1 Series
Exterior material	Cold-rolled steel plate, surface chemical-resistant powder coating
Interior material	Special asbestos-free board
Working surface (selection)	Ceramic (S), ceramic steel plate (K)
Glass door	Reinforced glass, 6mm thick, weight-balanced type
Water faucet	1 pc
Socket	AC220V 10A, 2 pcs
Fluorescent lamp	One 30W for 120/150 type, one 40W for 180 type
Washing method	Multi-stage packing method (chemical washing)
Safety mechanism	Door drop prevention stopper, exhaust delay timer, exhaust fan operation monitor

Specifications

Model	LDC1-120	LDC1-150	LDC1-180
External dimensions (D×H×W)	750×2600×1200mm	750×2600×1500mm	750×2600×1800mm
Weight	Approx. 370kg	Approx. 480kg	Approx. 610kg
** Exhaust air volume**	12m³/min	16m³/min	19m³/min
Internal static pressure	170Pa (17.3mmH₂O)	210Pa (21.4mmH₂O)	290Pa (29.5mmH₂O)

Washing Efficiency

Measurement items	Inlet concentration	Washing efficiency	Washing liquid
Ammonia	109.4ppm	Over 85%	H₂SO₄ (pH below 3)
Hydrogen chloride	86.3ppm	Over 85%	NaOH (pH above 10)
Sulfur dioxide	78.7ppm	Above 90%	NaOH (pH above 10)
Chlorine	22.7ppm	Above 90%	NaOH (pH above 10)
Fluorine	36.4ppm	Above 90%	NaOH (pH above 10)

---

As the authorized distributor of Yamato Scientific in Indonesia, PT Universal Labora Analitika is ready to support your laboratory needs from product consultation to installation and after-sales service.
