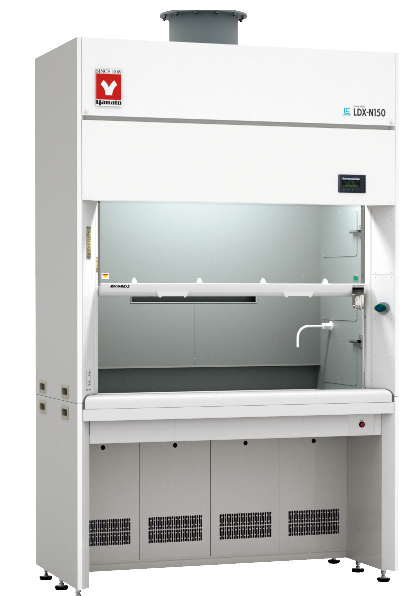

Yamato LDX Series

Fume Hoods | Exhaust Airflow Control Type

LDX

Energy-saving type with an airflow controller.

Designed for the safety, comfort, and energy savings in laboratory environments, equipped with an airflow controller. Multiple fume hoods can be connected to one exhaust fan unit for centralized exhaust, allowing individual control and separate exhaust as well.

• According to the front door opening, the constant airflow speed mode keeps the front airflow speed constant, regardless of the door opening size, keeping the exhaust volume constant in the constant airflow volume mode.
• With these two operation modes, it can provide a suitable exhaust environment according to usage conditions.
• Through an airflow sensor, it constantly monitors the front airflow speed and exhaust volume of the fume hood, maintaining a safe state.
• Equipped with various alarm functions such as door opening alarm and airflow abnormality.
• Using variable static pressure control, it operates safely and energy-efficiently.
• The lower part can be set with laboratory series storage cabinets and machines.

Common Specifications

Specification	Description
Exterior material	Cold-rolled steel plate, surface chemical-resistant powder coating
Interior material	Special board material without asbestos, silt-type buffer plate
Working surface (selection)	Ceramics (S)
Glass door	Reinforced glass, 6mm thick, weight-balanced type
Water faucet	1 pc
Socket	AC220V 10A, 2 pcs
Fluorescent lamp	one 120/150 type 30W, and one 180 type 40W
Safety mechanism	Door fall prevention stopper, exhaust delay timer, airflow monitoring

Specifications

Specification	LDX-120	LDX-150	LDX-180
External dimensions (Depth×Height×Width)	750×2400×1200mm	750×2400×1500mm	750×2400×1800mm
Weight	Approx. 270kg	Approx. 320kg	Approx. 360kg
Standard setting range - Airflow speed	0.5m/s (door fully open/standard setting)	0.5m/s (door fully open/standard setting)	0.5m/s (door fully open/standard setting)
Standard setting range - Airflow volume	12m³/min	16m³/min	19m³/min
Exhaust air volume	5–24m³/min	6–31m³/min	8–38m³/min
Internal static pressure	128Pa (24m³/min)	196Pa (31m³/min)	280Pa (38m³/min)

---
