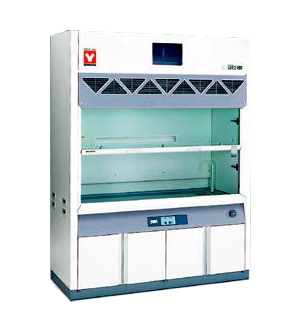

Yamato LDC2 Series

Fume Hoods | Environmental Protection Type, Simple Exhaust Treatment

LDC2

Environmental friendly fume hood with exhaust treatment device using a spraying method to treat the harmful gases.

• The washing tower and circulation water bath have a simple structure, making maintenance easy.
• The structure of the washing tower is made precisely by adopting a parallel spraying method.
• The main body is made entirely of stainless steel and is coated for chemical resistance, making it sturdy and highly fire-resistant.

Common Specifications

Item	Description
Exterior material	Cold-rolled steel plate, surface chemical-resistant powder coating
Interior material	Special asbestos-free board
Working surface	Ceramic (S), ceramic steel plate (K)
Glass door	Reinforced glass, 6mm thick, weight-balanced type
Water faucet	1 pc
Socket	AC220V 10A, 2 pcs
Fluorescent lamp	One 30W for 120/150 type, one 40W for 180 type
Washing method	Spraying method
Safety mechanism	Door drop prevention stopper, exhaust delay timer, exhaust fan operation monitor

Specifications

Model	LDC2-120	LDC2-150	LDC2-180
External dimensions (Depth×Height×Width)	750×2600×1200mm	750×2600×1500mm	750×2600×1800mm
Weight	Approx. 370kg	Approx. 480kg	Approx. 610kg
Exhaust air volume (recommended)	12m³/min	16m³/min	19m³/min
‣ Wind speed condition	0.5m/s when half-open for all models
Internal static pressure (recommended)	196Pa (20mmH₂O)	343Pa (35mmH₂O)	490Pa (50mmH₂O)

Washing Efficiency

Measurement items	Inlet concentration	Washing efficiency	Washing liquid
Hydrogen chloride	85.0ppm	97.4%	H₂O
Ammonia	94.0ppm	84.0%	H₂SO₄
Sulfur dioxide	44.0ppm	79.5%	H₂SO₄

---
