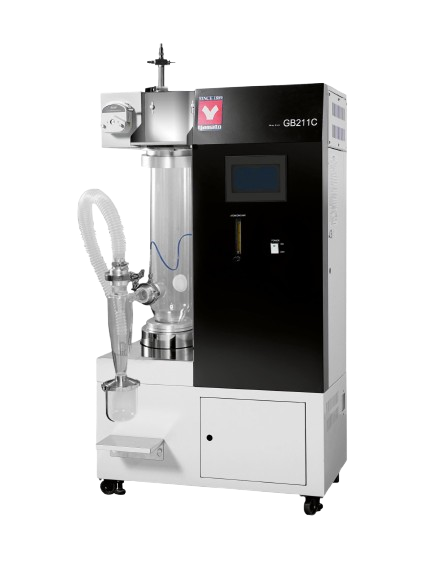

Yamato GB211C-A

Spray Dryers | Multi-functional

GB211C-A

New intelligent spray dryer with multiple functions and easy operation.

Features

• Instantaneous heating of granular samples ensures that even thermally stable samples are not oxidized and uniform fine powder can be obtained.
• The micro-powder after spraying has low moisture content, will not be oxidized, and no pollution.
• Since the sample is directly dried from the solvent or suspension into micro-powder, it eliminates the pre-processing and post-processing operations such as filtration, separation, and grinding, and avoids contamination during these operations.
• By connecting the organic solvent recovery device, samples containing organic solvents can be professionally and safely handled.
• After installing the optional granulation component GF200, it can be used as a fluidized bed dryer and granulator.
• Equipped with an electric lift, it is convenient for installing and removing attachments.
• The machine is equipped with power socket (1A) for the stirrer, convenient for stirring the suspension while sampling.
• Use a unique peristaltic sampling pump, nozzle cooling mechanism, pulse nozzle cleaning mechanism, anti-blockage needle, etc., to achieve diversity and stability in spray conditions.
• Brand new 7-inch ultra-large touch screen control panel, available in Chinese/Japanese/English, easy and convenient to operate.
• Both two-fluid nozzles and three-fluid nozzles can be used.
• Experimental data recording and storage can be realized (optional function).
• Remote control is possible (optional function).
• Temperature zoning control is adopted, heating up faster and more stable.
• High-power heaters greatly enhance the time to reach temperature and the temperature setting range is wider, meeting more sample experiments, and the temperature setting time is fixed, to do more experiments.
• Widely used in the development of new food materials, new materials, and sample coating.

Specifications

Specifications	GB211C-A
Applicable test material	Water-soluble & organic solvent (when connected to GAS411C)
Moisture evaporation capacity	Max. 1500ml/h
Temp. regulator setting range	0-240°C (inlet temperature), 0-100°C (outlet temperature)
Temp. adjusting accuracy	Inlet temperature ±1°C
Drying air volume adjustment range	0.2~0.9 m³/min
Spray air flow adjustment range	0~30L/min
Spray pressure usage range	0.3~0.6Mpa
Nozzle cleaning function	Manual pulse air cleaning from the nozzle front end
External output	Inlet temperature, outlet temperature output (4–20mA)
Temp. regulator	Multi-PID control
Touch screen	Regulates temperature, blower, heater, pump, pulse air switch, auto needle, alarm, operation curve
Control switch	Inlet temperature, outlet temperature control switch
Temp. sensor	PT100 thermistor
Heater	3.2KW
Liquid feed pump	Duct type liquid feed pump
Spray air pump	External compressor or GAS411C internal compressor (sold separately)
Service socket	For stirrer: 200~230V–1A
Suction blower	Tubular blower
Filters	Suction filter, exhaust filter
Solvent recovery	Use a solvent recovery device (sold separately)
Spray nozzle cooling structure	Can connect CF3121-B joints ×2, outer diameter Ø10.5mm (sold separately)
Spray air connection	Joint outer diameter: Ø7mm
Exhaust connection caliber	Ø50mm
Safety functions	Overheat protection, pump reverse, leakage protection, nozzle errors (with GAS411C)
External dimensions	W760×D420×H1350mm
Weight	Approx. 110kg
Power supply	200-230V-50/60Hz 17~21A
Accessories	2×Heater, 1×Exhaust cone, 1×Connection joint, 1×Nozzle cleaning needle, 2×Hose (with 1×Hose clamp), inlet tube, exhaust cone, nozzle connection sleeve, suction filter, exhaust filter, GF031E glass, user manual
