MarShaft | Optical-tactile shaft measuring devices

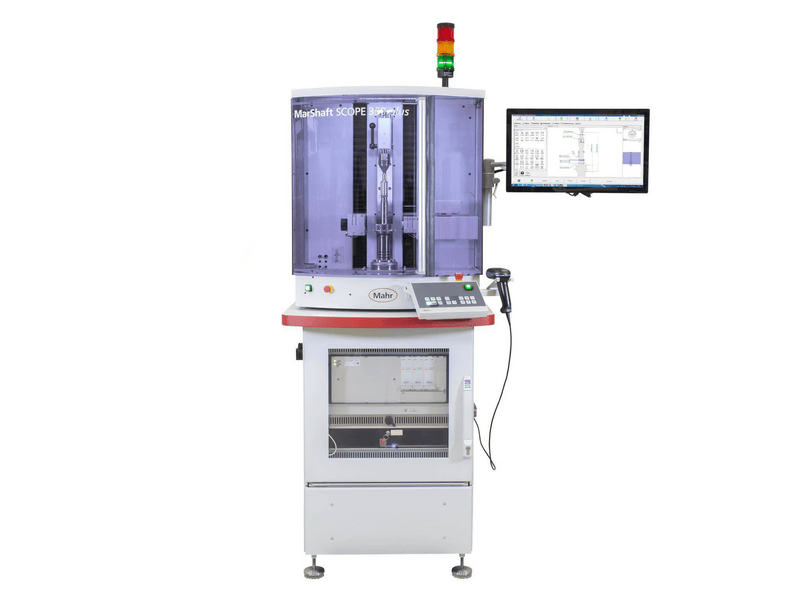

MarShaft SCOPE 350 plus

The MarShaft SCOPE plusseries offers universal, fully automatic optical shaft measuring systems for measuring rotationally symmetrical workpieces up to a diameter of 120 mm and lengths of 350 or 750 mm.

All units have ahigh-precision roundness measuring axis (C) sowie vertical (Z) and horizontal (X) measuring axes. As a supplement to the built-in CMOS matrix camera is an optional tactile measuring unit with inductive 2D measuring probe and additional measuring axis (Y) in order to measure e.g. radial and axial runout. The measuring device is calibrated to the optical measuring system, making it possible to combine tactile and optical measuring tasks.

The measurement and evaluation software MarWin , which has been tried and tested over many years and is constantly updated, enables maximum flexibility with the simplest operation. The measurement sequences are fully automatic and free of operator influences. Zoom functions allow the measurement of the smallest details that are difficult or impossible to verify with conventional measurement methods.

MarShaft SCOPE 350 plus | Art. no. 5361507

Specification	Value
Positioning speed C-axis	0.2 - 60 1/min
Positioning speed X axis	0.5 - 100 mm/s
Positioning speed Z-axis	0.5 - 200 mm/s
Table load max.	15 kg
Error limit Length	MPE ≤ (2.0 + l/125) µm; "l" in mm
Error limit diameter	MPE ≤ (1.0 + d/125) µm; "d" in mm
Angular resolution	0.01 - 0.0001 °
Reference temperature	20 °C
Workpiece length max.	350 mm
Workpiece diameter max.	120 mm
Sensors	optical(-tactile)
Camera system	CMOS matrix camera
Probe system	Mahr 1320-2 (optional)
Special equipment	Tailstock
Measuring computer	19” industrial PC (incl. Microsoft Windows 10 IoT LTSC)
Operating temperature	40 °C to 10 °C
Permissible humidity	max. 90 %; non-condensing
Weight basic unit	120 kg
Scope of delivery	2 pieces 60° centering tips (⌀ 2–40 mm)
