MarSurf | Contour measuring station

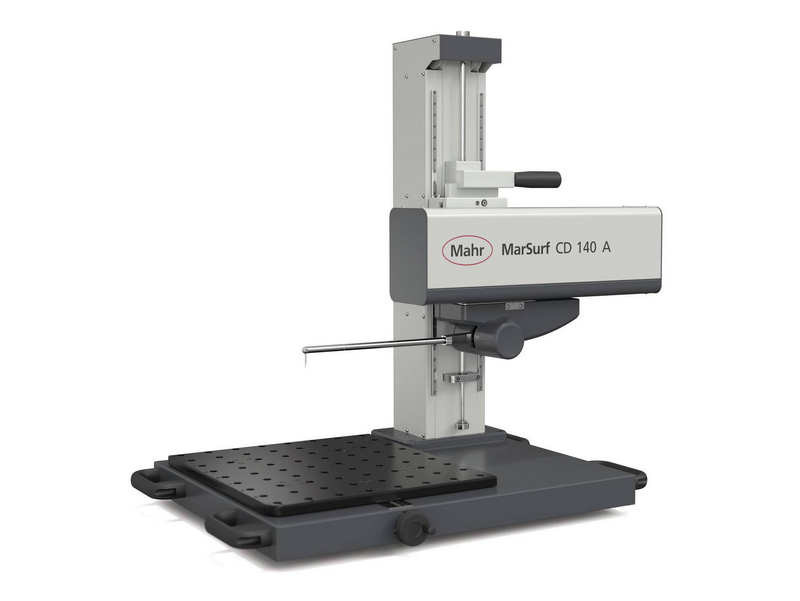

MarSurf CD 140 AG

Fast measuring and retooling

• Short measuring times thanks to high positioning and measuring speeds
• Manual quick adjustment of the drive unit in the Z-axis with fine adjustment for optimum alignment
• Quick, tool-free change of the probe arm thanks to magnetic suspension – without recalibration
• Tracing force selection prevents incorrect measurements

Flexible and versatile in use

• Workpiece mounting plate offers sufficient space even for large workpieces
• Large measuring range of 70 mm for versatile applications
• Maximum handling flexibility thanks to mounting plate with 50 mm bore size
• Wide selection of probe arms and accessories

Extensive software package

• Measurement of double contours, e.g. for determining diameters
• Optional roughness measurement from Rz 2 μm possible
• Simple and intuitive contour measurement and evaluation
• Start Quick & Easy programs by reading in DMC codes

Technical Data

Specifications	MarSurf CD 140 AG
Resolution	19 nm
Dimensions in mm	572 x 905 x 822 mm
Measuring force (N)	4 mN to 30 mN, adjustable using software
Measuring speed	0.1 mm/s to 10 mm/s
Positioning speed X axis	0.1 – 200 mm/s
Probe	Contour probe system
Workpiece weight max.	35 kg
Other functions	Machine weight: 100 kg
Measuring range mm	70 mm with probe arm length 350 mm

Applications

Mechanical engineering: Bearings, threads, threaded rods, ball screws, shafts, racks Measurement close to production: Contour measurement in a semi-automatic process Automotive industry: Steering, brake system, transmission, crankshaft, camshaft, cylinder head Medicine: Contour measurement for hip and knee endoprostheses, contour measurement for medical screws, contour measurement for dental implants
