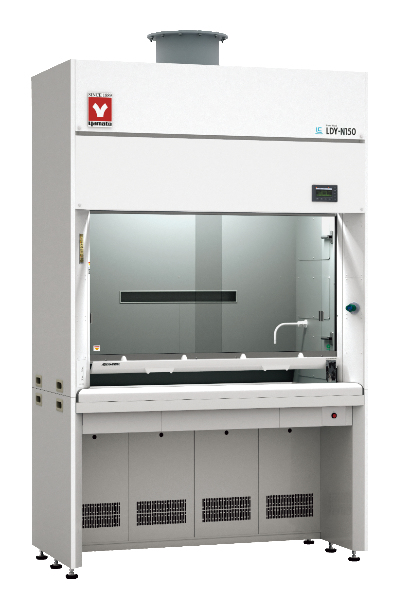

Yamato LDY Series

Fume Hoods | Airflow Control Type with Sliding Door

LDY

Convenient type fume hood with glass doors that can open up and down as well as left and right.

A fume hood with left and right sliding glass doors, not found in previous products, and with controllable airflow. Using left and right sliding glass doors, safer and more efficient operation is achieved. Additionally, the VAV type (variable airflow volume type) fume hood is automatically controlled by measuring the speed of the reagent and has high safety.

• With left and right sliding glass doors, operation is more convenient.
• Compared to up and down doors, left and right sliding glass doors can minimize the opening area. The opening degree when the door is fully open is half of previous products, effectively reducing airflow when fully open.
• Automatically adjusts airflow according to the opening degree of the left and right sliding glass doors, VAV type (variable airflow volume type) fume hood can reduce air conditioning operation costs by approximately 80% compared to fully exhaust types (when the front glass door is fully closed).
• The lower part can be set with laboratory series storage cabinets and machines.

Common Specifications for LDS Model

Model	LDS Series
Exterior material	Cold-rolled steel plate, surface chemical-resistant powder coating
Interior material	Special board material without asbestos, slit-type buffer plate
Working surface (selection)	Ceramics (S)
Glass door	Reinforced glass, 5 mm thick, Door frame: Aluminum (chemical-resistant coating) Upper and lower doors (weight-balanced type) Left and right doors (sliding rail type)
Water faucet	1 pc
Socket	AC220V 10A, 2 pcs
Fluorescent lamp	One 120/150 type 30W, and one 180 type 40W
Safety mechanism	Door fall prevention stopper, exhaust delay timer, airflow monitoring

Specifications

Model	LDY-120	LDY-150	LDY-180
External dimensions (Depth×Height×Width)	750×2400×1200 mm	750×2400×1500 mm	750×2400×1800 mm
Weight	Approx. 270 kg	Approx. 320 kg	Approx. 360 kg
Exhaust air volume	5~13 m³/min	6~17 m³/min	8~22 m³/min
Internal static pressure	36 Pa (13 m³/min)	58 Pa (17 m³/min)	83 Pa (22 m³/min)

---

As the authorized distributor of Yamato Scientific in Indonesia, PT Universal Labora Analitika is ready to support your laboratory needs from product consultation to installation and after-sales service.
