Compression and bending testing machines for concrete block products and (fibre) reinforced concrete

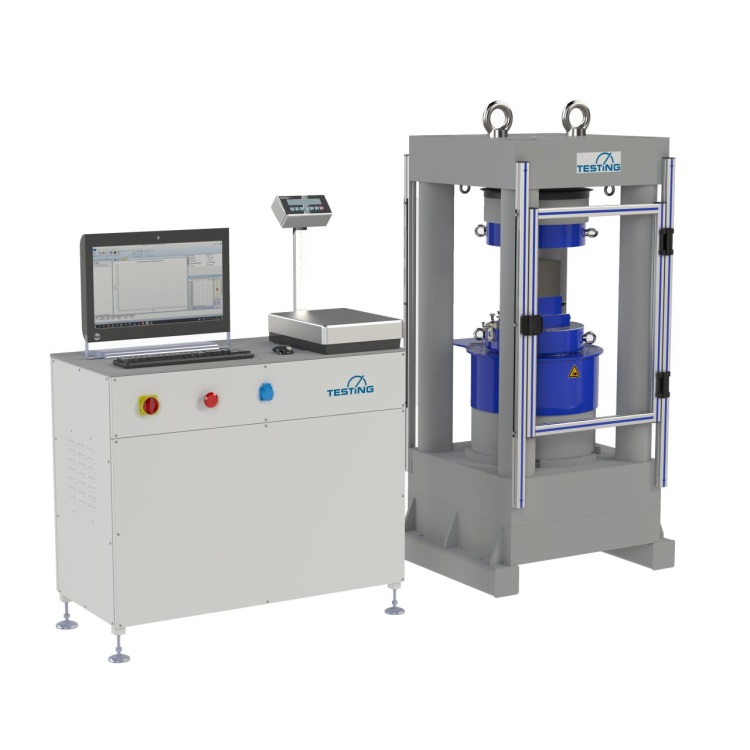

Compression testing machine 4000 kN

Test frame with hydraulic cylinder for compression strength test in strain gauged column. The compression testing machine is suitable for compressive strength tests of light, normal and heavy concrete. Class 1 according to DIN EN 7500-1 in expansion cylinder version, servo-controlled. 2 parts: consisting of a test frame and a separate control unit.

Normen: DIN EN 12390-3, 12504-1, 12390-6, 12390-13, 1338, 206, ASTM C39, C140, C1314, E4, AASHTO T22

Technical data

• Force display range: 0 - 4000 kN
• Force measuring range: 80 - 4000 kN, class 1
• Stroke: 100 mm
• Test chamber height: 340 mm
• Column spacing: front 450 mm; side 450 mm
• Machine platens: Ø415 mm according to DIN EN 12390-4
• Optional rectangular printing plate variants

Control Unit

Doli EDC provides fully automated experimental procedures with predetermined rate of loading, force controlled tests (deformation and displacement controlled tests require further accessories) and automatic break detection.

Safety

A large area of the testing machine is equipped with a impact-resistant,transparent test room protection made of polycarbonate.

Dimensions

• Test frame: (W x D x H) = 930 x 860 x 1960 mm
• Weight: approx. 4000 kg
• Control cabinet: (W x D x H) = 1200 x 570 x 1040 mm
• Weight: approx. 550 kg
• 3 ~ 400 V / 50 Hz - 4 kW

---
