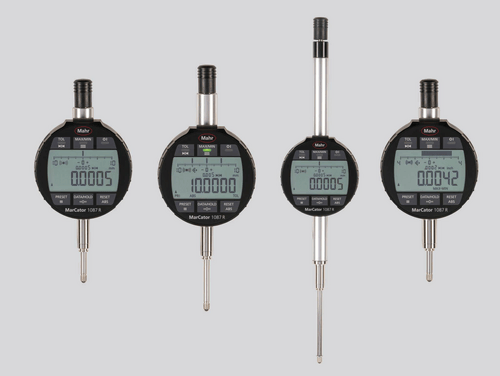

MarCator 1086 R

Digital indicator

FUNCTIONS

FEATURES

Integrated wireless transmitter
High contrast LCD
Operating and display unit (bezel) can be rotated through 280°
Mounting shank and measuring spindle are both made of hardened stainless steel
Immediate measurements due to the Reference System
Software: MarCom Professional free download: www.mahr.com/ marcom (only for Mahr data cables and wireless systems with USB and RS– 232 interface)
Digit height: 11 mm
Data interface: Integrated wireless, USB, Digimatic, Opto RS– 232C
Battery type: CR 2450N (3V Lithium)
IP protection category: IP 42
Package contains: instruction manual, battery

Application

Comprehensive measuring function for static measurements such as lengths, distances and length differences

TECHNICAL DATA

Order no.	Type	Measuring span (mm)	Measuring span (inch)	Resolution (mm)	Resolution (inch)	Error limit (mm)	Error limit over 50 graduations (mm)	Measuring force (N)	Standard	Lifting protection cap
4337624	1086 Ri	12.5	0.5″	0.0005, 0.001, 0.002, 0.005, 0.01	.00002″, .00005″, .0001″, .0002″, .0005″	0.004	0.002	0.65–0.9	Factory standard	●
4337625	1086 Ri	25	1″	0.0005, 0.001, 0.002, 0.005, 0.01	.00002″, .00005″, .0001″, .0002″, .0005″	0.004	0.002	0.65–1.15	Factory standard	●
4337626	1086 Ri	50	2″	0.0005, 0.001, 0.002, 0.005, 0.01	.00002″, .00005″, .0001″, .0002″, .0005″	0.007	0.002	1.25–2.7	Factory standard	●
4337627	1086 Ri	100	4″	0.0005, 0.001, 0.002, 0.005, 0.01	.00002″, .00005″, .0001″, .0002″, .0005″	0.008	0.002	1.8–3.5	Factory standard	●
4337628	1086 Ri	25	1″	0.0005, 0.001, 0.002, 0.005, 0.01	.00002″, .00005″, .0001″, .0002″, .0005″	0.004	0.002	0–0	Factory standard	●
