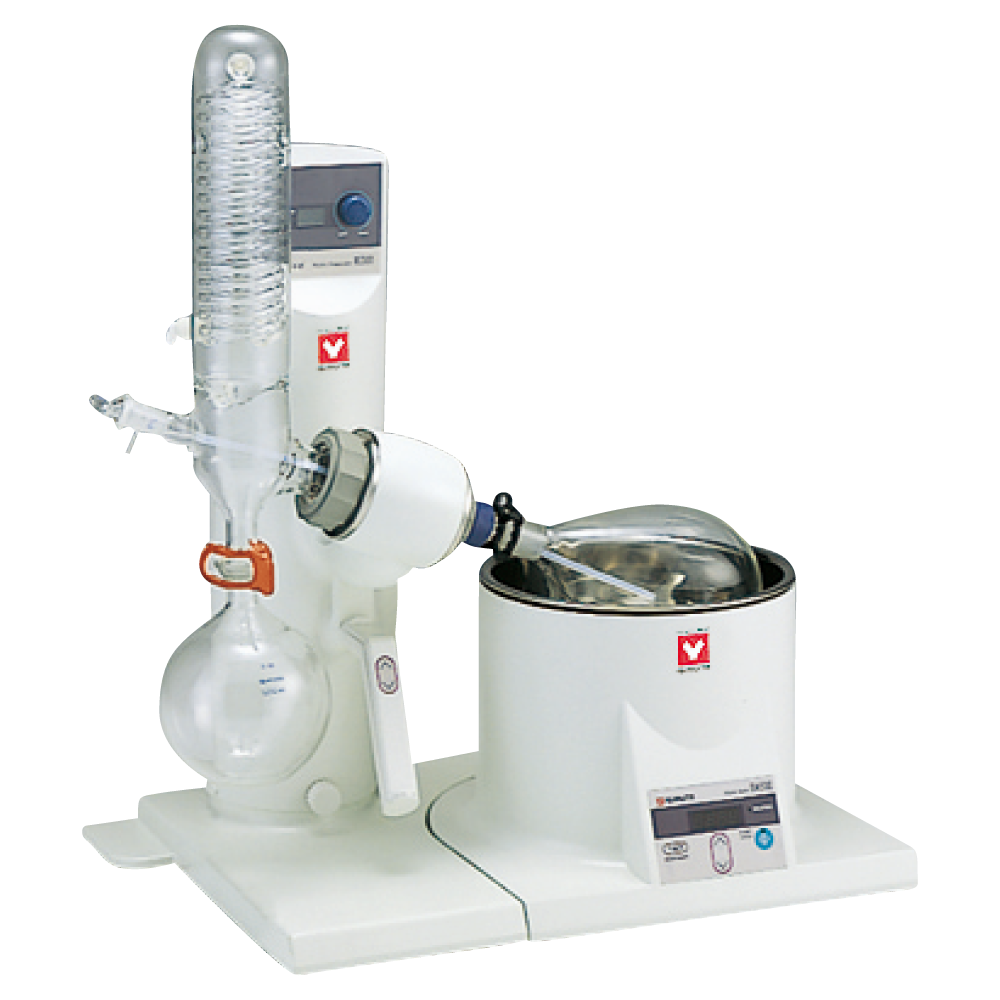

Rotary Evaporators | Automatic Lifting Type

RE311

The basic rotary evaporator equipped with an electric lifter to improve operability.

Features

• Equipped with an electric lifter, the device can be moved up and down by switch control.
• The rotational speed can be digitally set and displayed.
• By adopting a feedback control motor, stable rotation from low to high speed can be achieved.
• This product uses wide voltage; please connect it to a power supply of 100~240V.
• Space-saving design, easily stored in a fume hood.
• Equipped with an electric lifter rise function in the event of a power outage.

Specification

Specification	RE311
Motor	DC brushless motor (for rotation), DC motor (for lifter)
Rotation Speed	20–250 rpm
Electric Lifter Stroke	130 mm
Rotation Speed Setting	Potentiometer type (Digital display)
Safety Functions (Body)	Manual lower limit range setting, motor overload
Lifter Function	Electric lifter
External Dimensions	When installing glass set A: Width 828 × Depth 400 × Height 586 mm (716 mm when lifter is raised) When installing glass set B/C: Width 643 × Depth 400 × Height 727 mm (857 mm when lifter is raised)
Weight	Approx. 14.4 kg (excluding glass parts, water/oil bath)
Power Supply	Body (50/60Hz) rated current: AC100–240V 1.5A (excluding water/oil bath), (3A)

---

As the authorized distributor of Yamato Scientific in Indonesia, PT Universal Labora Analitika is ready to support your rotary evaporation needs, from product consultation to delivery and after-sales service. Contact us for the details and product catalog.
