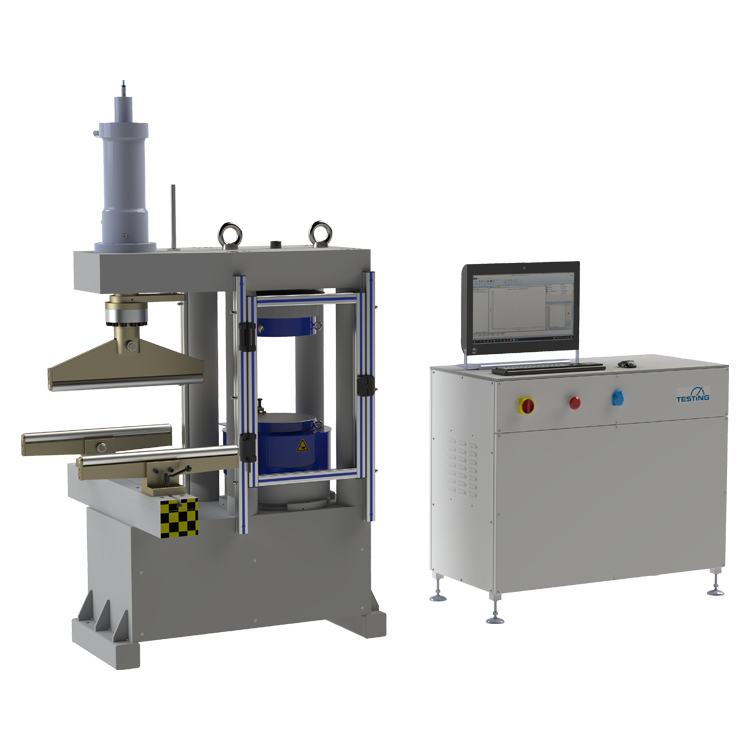

Combined Compression / Bending Testing Machine 3000kN / 300kN

The Combined Compression / Bending Testing Machine 3000kN / 300kN is a compact and high-capacity system designed for compression and bending strength testing of light, normal, and heavy concrete. This space-saving combination unit integrates both test functions into a single robust frame, enabling versatile material evaluation in civil engineering laboratories and production quality control.

The machine's massive steel frame offers excellent rigidity, and its columns are tensioned without play, ensuring stable force application and accurate measurements. An optional position measuring system can be installed for enhanced displacement tracking during testing.

The system complies with DIN EN 12390-4 for structural integrity and meets measurement accuracy Class 1 according to DIN EN 7500-1, making it suitable for both standard and advanced test procedures.

As the official distributor of Testing GmbH in Indonesia, PT Universal Labora Analitika provides complete support for this model—from procurement to installation and after-sales service.

✅ Key Features

1. Combined testing system: compression (3000 kN) and bending (300 kN)
2. Highly rigid frame with tensioned columns for accurate, repeatable tests
3. Optional position measuring system available
4. Complies with DIN EN 12390-4 and Class 1 accuracy (DIN EN 7500-1)
5. Ideal for testing concrete beams, blocks, and large structural samples

📌 Applications

Compressive strength testing of:

1. Light, normal, and high-strength concrete
2. Structural precast elements

Flexural strength testing of:

1. Reinforced concrete beams
2. Pavement elements
3. Shotcrete and fibre-reinforced components

Used in:

1. Civil engineering research labs
2. Construction material certification
3. Concrete manufacturing QA/QC

📄 Standards and Norms

1. DIN EN: 12390-3, 12390-6, 12390-13, 12504-1, 1338, 206
2. ASTM: C39, C140, C1314, C78, C293, C469, C496, C1019, C109/C109M
3. Others: E4, AASHTO T22, DIN EN 12390-5, 1339, 1340

This model is the ideal solution for institutions and industries that demand a reliable, high-capacity, and space-efficient machine to conduct standardized and advanced mechanical tests on concrete-based materials.

🔗 Explore this product

📞 For quotations, technical documentation, or assistance regarding the Combined Compression / Bending Testing Machine 3000kN / 300kN (22.2404.01–SV–i20), please contact PT Universal Labora Analitika, the authorized distributor of Testing GmbH Germany in Indonesia.
