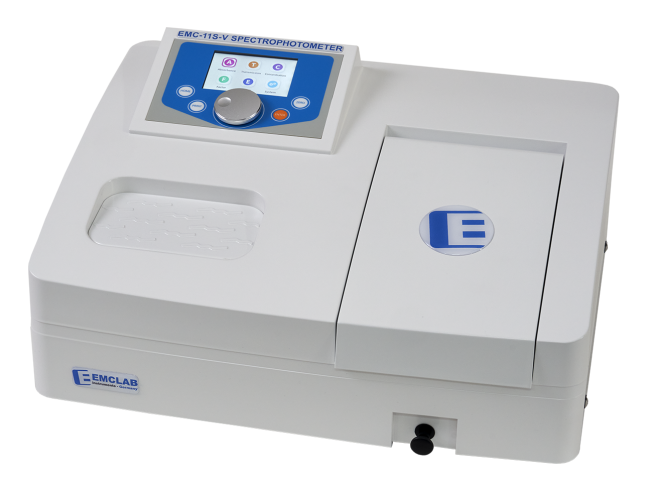

EMC-11S-UV Single Beam

UV/VIS Spectrophotometer

EMC-11S-UV

Features:

• Color TFT screen
• Self-check system
• Fast choose wavelength
• Auto Zero and Blank
• Sample compartment for different cell holders
• Incl. PC Software EMC- λ Lambda (Wavelength Measurement, Spectrum Scan, Quantitative Measurement, Kinetic Measurement, DNA/RNA Measurement)
• Incl. EMCLAB Works Calibration Certificate

The additionally installed deuterium lamp enables the 11S-UV, in contrast to the 11S-V, to also measure within the UV range of the light spectrum. It is therefore suitable for applications that need to cover a greater variability of samples. Kinetic measurements and wavelength scans can also be performed with the instrument via the PC software EMC- λ Lambda.

Specifications	EMC-11S-UV
Wavelength Range	200–1000 nm
Spectral Bandwidth	4 nm
Optical System	Single Beam, grating 1200 lines/mm
Wavelength Accuracy	±2 nm
Wavelength Repeatability	1 nm
Photometric Accuracy	≤±0.5% T or ±0.005A@1A
Photometric Range	0–200% T, -0.3–3A, 0–9999 conc.
Photometric Repeatability	≤0.2% T
Photometric Mode	T, A, C, F
Stray Light	0.2% T
Stability	±0.004A/h@500 nm
Baseline Flatness	±0.001A (200–1000 nm)
Noise	0.003A@500 nm
Detector	Silicone Photodiode
Display	Color TFT screen
Central Beam Height	15 mm
Standard Cell Holder	4-position cell holder 10×10 mm
Light Source	Tungsten & Deuterium lamp
Output	USB port & Parallel port for printer
Power Requirement	AC 85V–265V 50/60 Hz
Dimensions (L×W×H)	440 × 350 × 200 mm
Weight	9 kg

---

As the authorized distributor of EMCLAB in Indonesia, PT Universal Labora Analitika is ready to support your spectrophotometric analysis needs from product selection to installation and technical service. Contact us now!
