MarSurf | Roughness measuring station

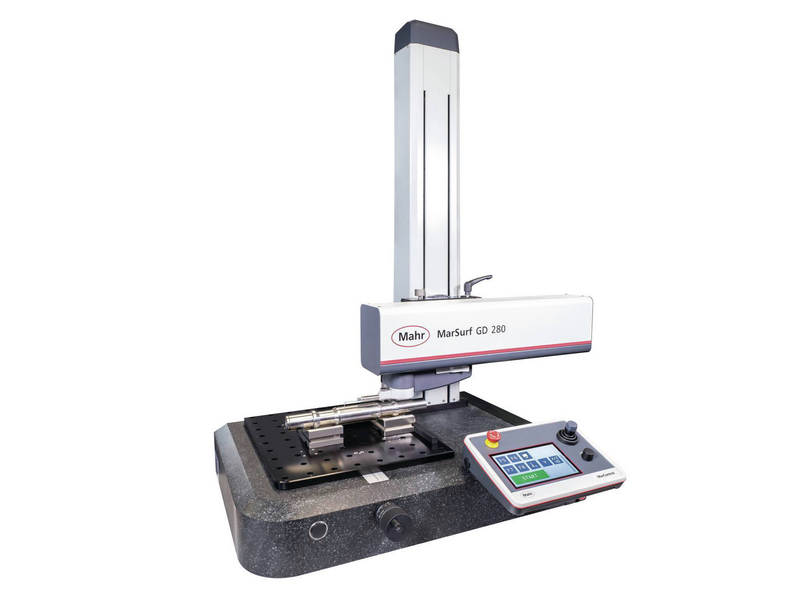

MarSurf GD 280

MarSurf GD: The new reference measuring station for roughness and waviness measurements

The new Mahr measuring stations from the MarSurf GD series are setting new standards. In addition to surface roughness evaluations, profile, and waviness evaluations can also be performed. The new MarSurf GD series is enabling production companies to achieve a new dimension to reliably ensure and improve the production quality of workpieces in the measuring room or close to the production area.

The new measuring station concept combines speed, security, and flexibility. The aim is to increase the cost-effectiveness of the system for your company.

The measuring stations are operated with the user-friendly MarWin software (MarWin EasyRoughness or MarWin ProfessionalRoughness).

Speedy measurements and changeover

• Very short measuring times thanks to high positioning and measuring speeds (up to 200 mm/s in X and 50 mm/s in Z)
• Z-axis with full CNC-capability for automated operation
• Contact and zeroing across Z-axis in Z+ and Z-
• Quickly change the probe arm without tools thanks to magnetic mount

Flexible and versatile

• Easily switch from standard to perpendicular measurement without a tool or adapter - even for upside down measurements
• 390 mm x 430 mm support plate can hold even large workpieces
• Maximum handling flexibility thanks to support plate with 50 mm bore dimension and plug-in guide stops
• Proven quality and wide range of probe arms from the BFW-250 probe system
• Extensive accessories for maximum flexibility

Technical Data

Specification	MarSurf GD 280
Resolution	Measuring range 1: 2.0 nm Measuring range 2: 0.2 nm
Start of traversing length (in X)	0.1 mm
End of traversing length (in X)	280 mm
Traversing length (Lt)	0.1 - 280 mm
Guide deviation	0.20 µm / 60 mm 0.40 µm / 140 mm 0.75 µm / 280 mm
Measuring force (N)	0.75 mN
Measuring speed	0.02 mm/s to 10 mm/s
Positioning speed X axis	0.02 - 200 mm/s
Positioning speed Z-axis	0.02 - 50 mm/s
Probe	Roughness probe system (skidless)
Probe arm length	45 mm (x 1) 67.5 mm (x 1.5) 90 mm (x 2) 112.5 mm (x 2.5) 135 mm (x 3)
Workpiece weight max.	90 kg
Other functions	manual TY
Measuring range mm	500 µm (±250 µm) for probe arm length 45 mm 1500 µm (±750 µm) for probe arm length 135 mm

---

PT Universal Labora Analitika is the official Mahr distributor in Indonesia, offering consultation, demonstration, installation, and after-sales support for the MarSurf line.
