Mahr Pneumatic Length Measuring Systems

Millimar | Compact length measuring instrument

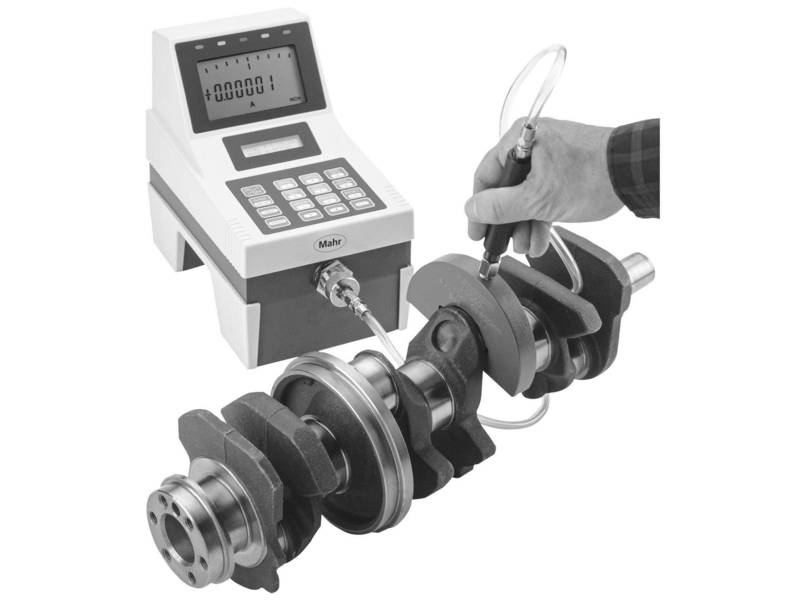

Millimar 832 PE/F2

FEATURES

• Digital and analog display in one unit. Large, high-contrast digital display of the exact deviation from zero and analog display of measurement-related information
•  With its fixed ratio and controlled compressed air supply, the digital Dimensionair is a sturdy, reliable system for manufacturing environments.
• Only one standard needed for zero offset; the instrument is precalibrated for the correct ratio
• Measuring ranges and resolutions for almost all measuring applications, including measuring equipment with 2, 3, 4 and 6 nozzles, air sensors and nozzle measuring probes.
• Suitable for dynamic measurement
• RS-232 output for communication with a data storage device, computer or printer, for statistical process control
• Master deviation – improved measurement with even more accurate automatic zero offset.

TECHNICAL DATA

Specification	832 PE/F2
Range of digital display	±80, ±40, ±20 (µm)
Range of digital display	±.003″, ±.0015″, ±.00075″ (inch)
Energy supply	110 V / 60 Hz, Power source
Resolution	0.2 (µm)
Graduation	4, 2, 1 (mm)
Graduation value	150 µ″, 75 µ″, 38 µ″ (inch)
Display	Display mode A (or A and B for 2 channel models only)
Tolerance display	5 LEDs
Compatibility	Federal
Dynamic functions	Max, Min, Max-Min
Statistical functions	Actual value, nominal value
Response time digital display	0.43 s
Error limit	+/- 1 digit
Data interface	RS-232C
Control outputs	5 TTL optocoupler outputs
Analog output	±5 VDC at maximum deflection of the selected measuring range for signal ±A, ±B
Operating temperature from	5 °C
Operating temperature up to	35 °C
Product weight	5 kg

More of Mahr's Pneumatic Length Measuring Instrument

---

Contact us for the details and the complete catalog of Mahr's product range
