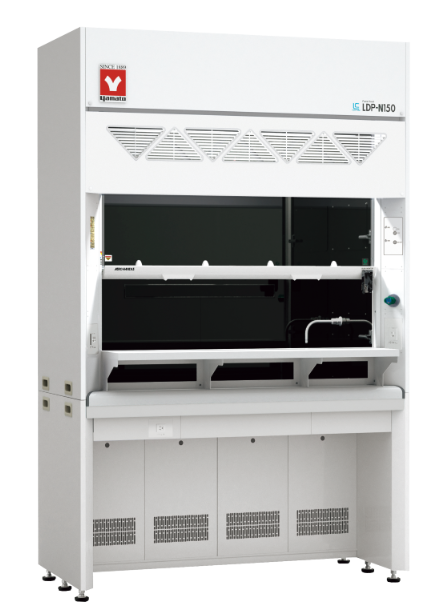

Yamato LDP Series

Fume Hoods | For Using Perchloric Acid

LDP

Specialized fume hood for using perchloric acid.

• The interior is equipped with high-temperature resistant PVC panels with excellent chemical resistance.
• Equipped with spraying nozzles for cleaning the inside of the baffle plates.
• To prevent backflow of perchloric acid, the airflow speed at the hood opening is set at 0.5~0.7m/s.
• Equipped with large current power sockets for heaters.
• The lower part can be set with laboratory series storage cabinets and machines.

Common Specifications

Specification	Description
Exterior material	Cold-rolled steel plate, surface chemical-resistant powder coating
Interior material	Special board material without asbestos, slit-type buffer plate
Working surface (selection)	Ceramics (S)
Glass door	Reinforced glass, 6mm thick, weight-balanced type
Water faucet	1 pc
Socket	AC220V 10A 120 type 2 pcs, 150 type 3 pcs, 180 type 4 pcs
Fluorescent lamp	one 120/150 type 30W, and one 180 type 40W
Safety mechanism	Door fall prevention stopper, exhaust delay timer, airflow monitoring

Specifications

Model	LDP-120	LDP-150	LDP-180
External dimensions (Depth×Height×Width)	750(+150)×2400×1200mm	750(+150)×2400×1500mm	750(+150)×2400×1800mm
Weight	Approx. 240kg	Approx. 270kg	Approx. 310kg
Exhaust air volume	24m³/min	30m³/min	37m³/min
Internal static pressure	108Pa (11mmH₂O)	88Pa (9mmH₂O)	127Pa (13mmH₂O)

---
