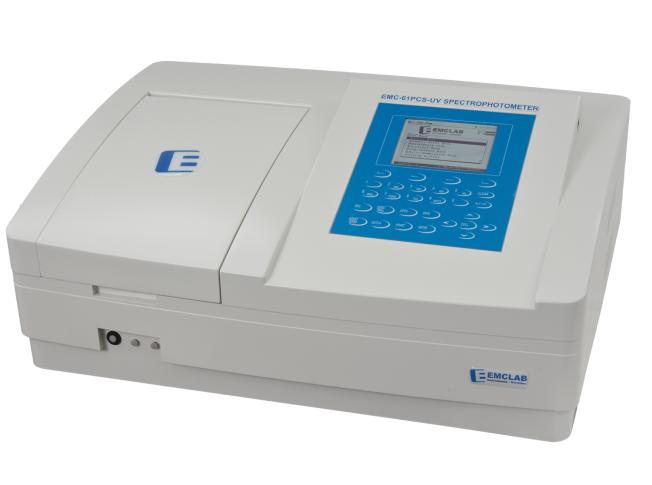

EMC-61PCS-UV Double Beam

UV/VIS Spectrophotometer

EMC-61PCS-UV

** Features:**

• Double Beam Variable bandwidths 0.5/1/2/4/5 nm
• LCD screen (320*240)
• Self-check system
• Auto Zero and Blank
• Sample compartment for different cell holders
• Incl. USB memory stick for methods and results
• Incl. PC software ANALYST (Wavelength Measurement,
• Wavelength Scan, Quantitative Measurement, Kinetic Measurement, DNA/Protein Measurement) Incl. EMCLAB Works Calibration Certificate

Similar to the 61PC-UV, the 61PCS-UV is a double beam photometer, making it particularly fast and precise. Due to the variable bandwidth, the 61PCS-UV offers maximum freedom in the selection of methods. It is therefore particularly suitable for use in the pharmaceutical sector.

Specifications	EMC-61PCS-UV
Wavelength Range	190–1100 nm
Spectral Bandwidth	0.5/1/2/4/5 nm
Optical System	Double Beam, grating 1200 lines/mm
Wavelength Accuracy	±0.3 nm
Wavelength Repeatability	0.2 nm
Photometric Accuracy	≤±0.5 % T or ±0.005A@1A
Photometric Range	0–200 % T, -0.3 – 3A, 0–9999 conc.
Photometric Repeatability	≤0.001A (0–0.5A), ≤0.002A (0–0.5A), ≤0.15 % T (0–100%)
Scan Speed	Hi, MED, LOW, MAX. 3000 nm/min
Stray Light	0.05 % T @220, 340 nm
Stability	±0.001A/h@500 nm
Baseline Flatness	±0.001A (200–1000 nm)
Noise	0.0003A@500 nm
Detector	Silicone Photodiode
Display	LCD 320×240 dots
Central beam height	15 mm
Standard Cell Holder	4-position cell holder + 1 reference 10×10 mm
Light Source	Tungsten & Deuterium lamp
Output	USB port A for USB memory stick USB port B for PC connectivity Parallel port for printer
Power Requirement	AC 110/230V 50/60 Hz
Dimensions (L×W×H)	589 × 428 × 240 mm
Weight	24 kg

---

As the authorized distributor of EMCLAB in Indonesia, PT Universal Labora Analitika is ready to support your spectrophotometric analysis needs from product selection to installation and technical service. Contact us now!
