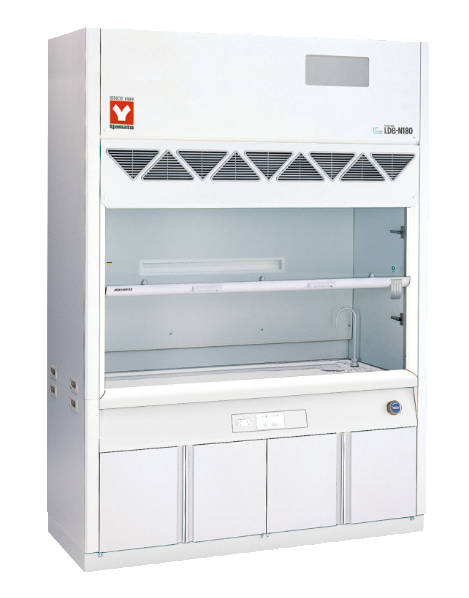

Yamato LDB Series

Fume Hoods | Environmental Type, Dual Tray Method

LDB

Environmental fume hood that processes harmful gases with a double-layer perforated plate exhaust treatment method.

• Using the company's patented double-layer perforated plate exhaust treatment method, it has high washing efficiency and easy maintenance, making it an environmental fume hood that protects the external living environment.
• All exhaust treatment devices are built-in, and the external dimensions are the same as the standard fume hood.

Common Specifications

Item	Description
Exterior material	Cold-rolled steel plate, surface chemical-resistant powder coating
Interior material	Special asbestos-free board
Working surface	Ceramic (S), ceramic steel plate (K)
Glass door	Reinforced glass, 6mm thick, weight-balanced type
Water faucet	1 pc
Socket	AC220V 10A, 2 pcs
Fluorescent lamp	One 30W for 120/150 type, one 40W for 180 type
Circulation pump	65W
Safety mechanism	Door drop prevention stopper, exhaust delay timer, exhaust fan operation monitor

Specifications

Model	LDB-120	LDB-150	LDB-180
External dimensions (Depth×Height×Width)	750×2600×1200mm	750×2600×1500mm	750×2600×1800mm
Weight	Approx. 370kg	Approx. 450kg	Approx. 540kg
Exhaust air volume (recommended)	12m³/min	16m³/min	19m³/min
Internal static pressure (recommended)	491Pa (50mmH₂O)	687Pa (70mmH₂O)	785Pa (80mmH₂O)

---

As the authorized distributor of Yamato Scientific in Indonesia, PT Universal Labora Analitika is ready to support your laboratory needs from product consultation to installation and after-sales service.
