MarSurf3D | 3D surface measurement

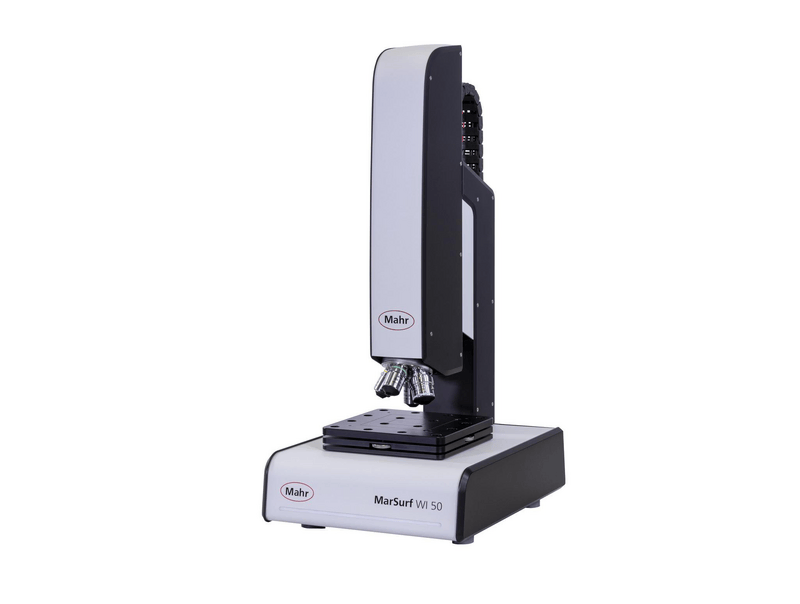

MarSurf3D WI 50

Flexible all-round measuring solution

Flexible all-round measuring solutions all the time - wherever it comes down to sub-nanometers: That’s what the MarSurf WI 50 stands for. The high-precision measuring tools for research and quality assurance deliver reliable 3D measuring values – quickly and easily in just a few steps. Thanks to its HD stitching function, the MarSurf WI 50 boasts consistently high resolution, even on large measuring surfaces. The integrated collision detection offers users a high level of safety in all directions – both for the workpiece and the instrument itself.

Typical measuring tasks

• Roughness measurements as per
• ISO 4287 & ISO 13565 / ISO 25178
• Topography measurements (including volume, wear, tribology)
• contour and form (2D, 3D)
• pore, particle analysis
• defect detection

Maximum data quality

One of our most important criteria, which equates to excellent precision, accuracy, reproducibility, and documentation to ensure traceability and auditability. Our greatest service for the customer is to provide a quantitative measuring value that can be implemented reliably in the engineering, product, process design, and quality control areas.

Application

• Mechanical engineering: Qualification and quantification of the roughness, geometry, and wear volume
• Electronic system and semiconductors: Component inspection right down to sub-nanometer range for fault-free products
• Medical technology: Quality assurance of medical surfaces in production and the laboratory
• Materials science: Optimization of functional features on new surfaces and products
• Microsystems technology: Measurement of complex surface geometries of the smallest components with nanometer precision
