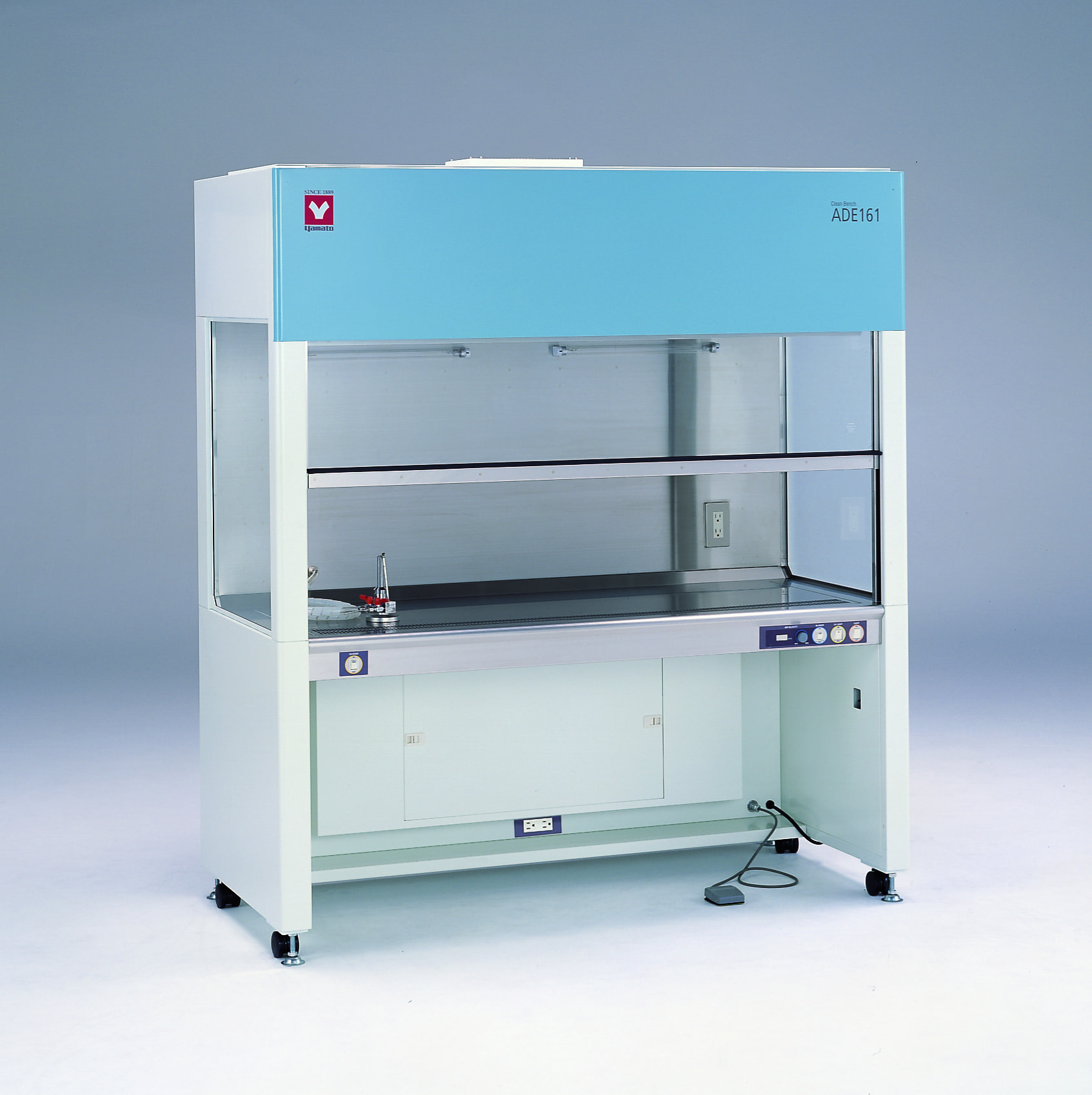

Yamato ADE101/131/161/191

Clean and safe forced circulation exhaust type.

• High cleanliness of the working space ensures negative pressure in the working area, preventing the leakage of contaminated gases to the outside. Operators and the laboratory are not affected.
• The exhaust port is also equipped with a HEPA filter as standard.
• It is not a device for handling pathogenic bacteria, etc., and a safety cabinet for biohazard products is required. Model description

---

Specification

Model	ADE101/131/161/191
Air flow direction	Vertical direction (down flow) Forced circulation exhaust type (weak negative pressure)
Cleanliness	Class 100 (JIS Class 5)
Blow-off air speed (m/sec)	Approx. 0.35 at early stage, Approx. 0.17 final
Illuminance (lx)	1000 (in the center of working face)
Load bearing of working face	50kg (static load)
Air volume Work space	Approx.12 m³/min (ADE101), 16m³/min (ADE131), 19.5 m³/min (ADE161), 23.5 m³/min (ADE191)
Air volume Exhaust	Approx.1.5 m³/min (ADE101), 2.0 m³/min (ADE131), 3.0 m³/min (ADE161), 3.5 m³/min (ADE191)
Exterior material	Cold roll steel sheet (chemical-resistant coating)
Interior material	Stainless steel sheet (SUS304)
Working platform	Working face: stainless steel (SUS304), wire drawing processing
Front door frame	Toughened glass 5mm, open and close up and down, spare 5mm opening when fully closed
HEPA Filter (mm) Dust collection effeciency	0.3μm DOP scan test 99.99 % or more
HEPA Filter (mm) Main	915 x 610 x 65/1pc (ADE101), 610×610×65/2 pcs (ADE131), 760×610×65/2 pcs (ADE161), 915×610×62/2 pcs (ADE191)
HEPA Filter (mm) Exhaust	305 x 200 x 50 / 1pc (ADE101), 610×200×50/2 pcs (ADE131), 610×200×50/2 pcs (ADE161), 760×200×50/2 pcs (ADE191)
Socket	AC220V or AC115V / 2pcs
Flourescent lamp	32W x 2pcs (ADE101 & ADE131), 40W×2 (ADE131 & ADE191).
Blower (single phase)	150W x 1
Working surface level adjustment	Use adjusting foot (-18~+40mm)
Display of pressure difference	Differential pressure gauge
Gas burner	1 pc / fire ignition type (can be used only when operating the machine)
Overcurrent protector	Earth leakage breaker 1pc
Working space height	720mm
External dimensions (mm)	W980×D770 (ADE101), W1300×D770 (ADE131), W1600×D770 (ADE161), W1910×D770 (ADE191)
Optional item	Wind velocity controller: displays wind velocity and with wind adjust device attachment
Power Source	AC220V 15A(Single-phase with step-down transformer)
Weight	180kg (ADE101), 220kg (ADE131), 250kg (ADE161), 290kg (ADE191)
Usage environment conditions	Temperature 5℃-35℃, humidity below 85% RH

---
