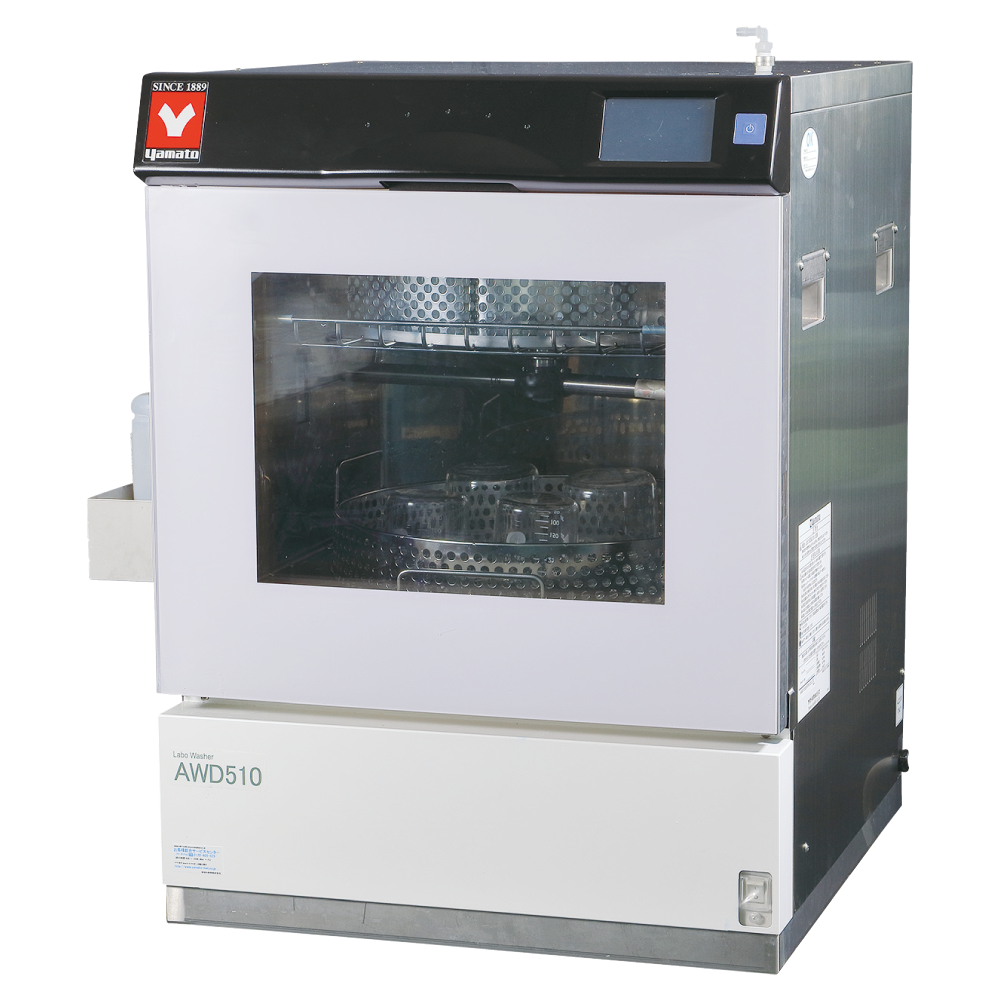

Yamato AWD510 Series

Laboratory Washers for Glassware | Fully-Automatic, Benchtop

AWD510/AWD510

Conforms to ISO15883 standards, cleaning process can be identified by color change in bath lighting.

Features

• Able to safely clean and sterilize.
• ~93℃ arbitrary rinse temperature setting.
• Sliding two-layer washing, which can meet the needs of large-scale washing at one time.
• Thorough cleaning with rotating nozzles on the upper, middle, and lower levels.
• Automatic dosing and dispensing of cleaning agents (liquid detergent).
• By using jet washing (optional), it is possible to clean the inside of containers such as beakers that are difficult to clean.
• Drying (optional) uses hot air filtered by a high-efficiency filter.
• Since hot water is cooled to below 60℃ before discharge, the drainage pipeline does not need to consider heat-resistant circuits.

User Friendly Operation

• The Chinese color LCD touch screen is easy to operate.
• With LED lights on the front panel and illumination colors in the washing bath, the progress of the cleaning process can be confirmed even from a distance.
• Using double-layered hollow glass windows, the surface will not heat up during hot water disinfection.
• An electronic lock is used to avoid accidentally opening the door during cleaning.
• Sample vials can also be easily cleaned with a cleaning frame specifically for sample vials (optional).
• According to the cleaning utensils, various cleaning racks (optional) and special cleaning agents are equipped.

Shared Specification

Spesifikasi	Detail
Washing method	Upper, middle, and lower rotating nozzles spray
Hot water supply method	2KW heating
Cleaning agent supply	Automatic dosing and dispensing (liquid detergent)
Drainage method	Forced drainage after hot water cooling
Usage environment temp. range	5~40℃ (indoor use only)
Water supply connection	Tap water (required): 5-25℃, water pressure 0.1~0.5MPa, main body interface G3/4, water supply side interface G1/2 Warm water (optional): 5-60℃, water pressure 0.1-0.5MPa, main body interface G3/4, water supply side interface G1/2
Cleaning agent	Special cleaning agent (purchased separately)
Pure water connection (optional)	0.02~0.1MPa (when using pure water rinse), hose connection outer diameter φ10.5mm
Exterior material	Stainless steel plate (SUS304)
Internal chamber material	Stainless steel plate (SUS316)
Feet	Adjustable leveling feet
Additional functions	4.3-inch LCD touch screen / process display LED / sub-process chamber lighting color
Safety device	Overcurrent leakage protection switch, temperature over-rise prevention, door lock, water leakage sensor
Internal chamber dimensions	Width 500 × Depth 480 × Height 480 mm
External dimensions	Width 580 × Depth 600 × Height 845 mm
Weight	Approx. 87 kg
Power supply	Single-phase AC220V 50/60Hz 14A
Accessories	Water supply hose, drainage hose, upper cleaning rack removal plug, cleaning agent stainless steel rack, drainage pipe clip, overflow hose, cleaning agent hose
