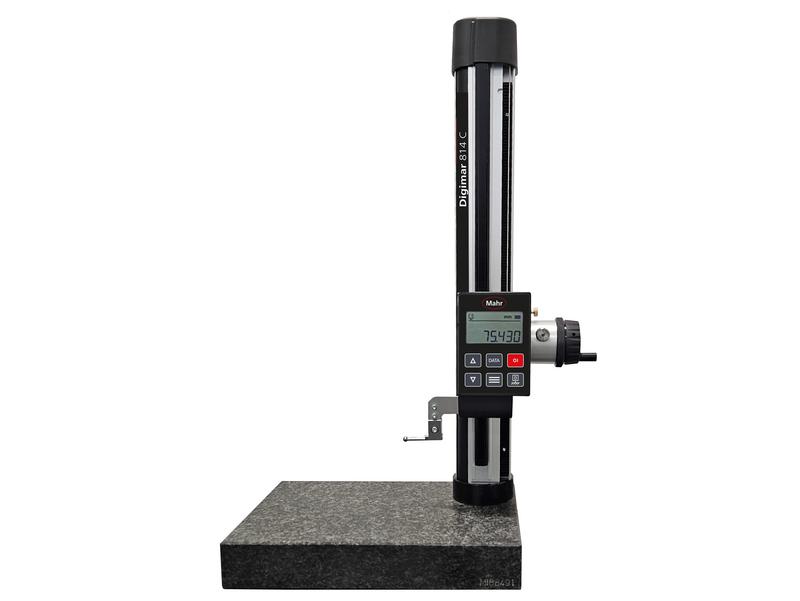

Mahr Manual Height Gage

Digimar | Manual Height measuring and scribing instrument

Digimar 814 C-G

FEATURES

• Easy to operate due to the hand crank on the side of the measuring head
• Constant measuring force; acting upwards or downwards as required
• Measuring head can be locked in position, ideal for scribing tasks
• With fine adjustment
• Power source independent due to being battery operated
• Universal application due to broad range of accessories

FUNCTIONS

Functions Contacting from below/above, Bar width or groove spacing incl. bar or groove center, Bore or shaft diameter incl. bore or shaft center, Reversal point bores (top or bottom), Reversal point shaft (top or bottom), Dynamic measurement functions

PACKAGE CONTAINS

Stylus 814 km, battery, test certificate, instruction manual.

TECHNICAL DATA

Specification	Value
Measuring range up to	300 mm
Measuring range up to	12 inch
Resolution	0.001 mm, 0.01 mm
Resolution	0.00005 inch, 0.0005 inch
Error limit	15 µm
Error limit	0.0006 inch
Repeatability planes	10 µm
Operation time Max	2000 h
Data interface	USB
Measuring system execution	inductive
Product weight	13.40 kg
