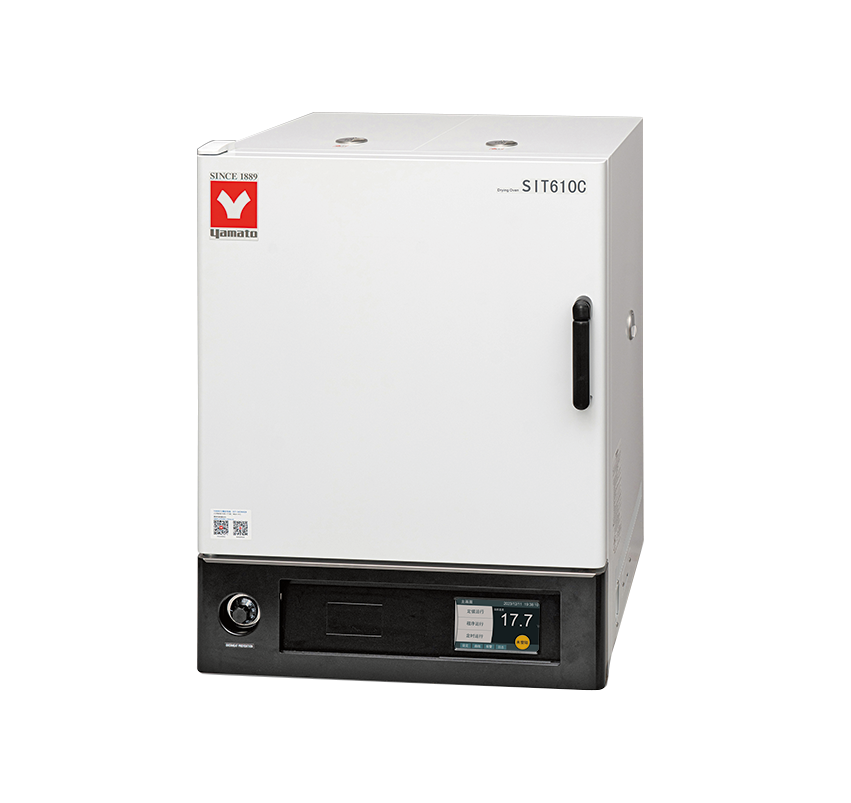

Yamato SIT Series

Dry Heat Sterilizers | Dry Heat Sterilization, Standard

SIT410C/610C/810C

Forced convection dry heat sterilizer with program function, easy to set.

Features

• Quick, safe and reliable sterilization function.
• Quick and accurate sterilization with HMI interface and preset sterilization programs.
• Temperature monitoring function monitors the temperature during the sterilization process and automatically stops timing and triggers an alarm if the chamber does not reach the sterilization temperature range.
• The sterilizer door is equipped with a safety interlock mechanism.
• Dual use can also be used as a forced convection drying oven.

Safety

• Equipped with self-diagnostic circuit (temperature sensor error detection, heater disconnection protection, automatic overheating prevention, SSR short-circuit protection), overheating prevention, overcurrent leakage protection switch, three-level authorization management system and other safety functions.

Common Specifications

Specifications	SIT Series
System	Forced convection hot air sterilization
Operating temp. range	Room temp. +10~300℃
Sterilization temp. range (GB standard)	±3℃ (160–200℃); ±5℃ (201–300℃)
Sterilization temp. uniformity (GB)	5℃ (160–200℃); 9℃ (201–300℃)
Max. temp. rising time	Approx. 55 min
Interior material	Stainless steel plate
Exterior material	Cold rolled steel plate with chemical proofing coating
Insulating material	Rock wool + centrifugal glass wool
Heater	Stainless steel heating pipe 1.6KW (SIT410C), 1.3KW × 2 (SIT610C), 1.8KW × 2 (SIT810C)
Fan blade/motor	Centrifugal fan blade, 30W motor × 1
Exhaust vent	I.D. 34 mm × 2, located at the back
Temp. control method	3-stage PID
Temp. setting method	7-inch color touch screen setting
Temp. display method	7-inch color touch screen display
Timer	1 min~99 h 59 min
Operation functions	Dry heat sterilization operation; Sterilization cycle operation; fixed temp., program, and timing operation
Additional functions	Temp. history curve, alarm history, data export, language switching (CN/JP/EN), calibration, screen dimming, power outage compensation, 3-level authorization, micro printer (optional)
Sensors	K-type thermocouple for overheat; Liquid expansion temp. controller
Safety device	Sensor error, heater disconnection, overheat prevention, SSR short-circuit, independent overheating prevention, overcurrent leakage protection

Difference Between Models

Model	SIT410C	SIT610C	SIT810C
Internal dimensions (W×D×H mm)	450×450×450	600×500×500	600×500×1000
External dimensions (W×D×H mm)	610×690×960	760×740×1010	760×740×1780
Internal capacity	90L	150L	300L
Shelf load	30kg/layer	30kg/layer	30kg/layer
Shelf layers	11 layers	13 layers	29 layers
Support interval	30mm	30mm	30mm
Power supply (50/60Hz) rated current	AC220V 7.5A	AC220V 12A	AC220V 16.5A
Weight	Approx. 80kg	Approx. 100kg	Approx. 140kg
