Compression and bending testing machines for cement, mortar and gypsum

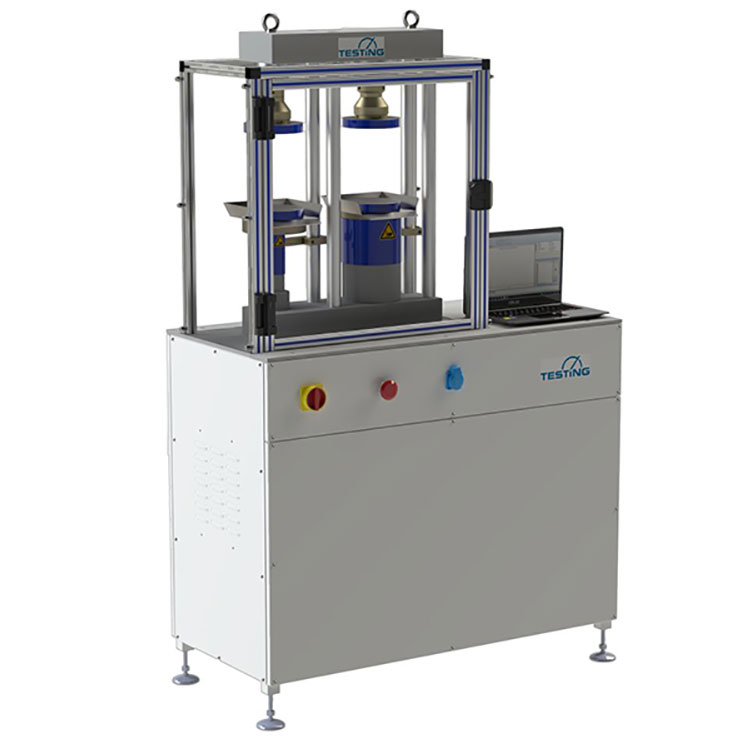

Combined Compression / Bending Testing Machine 300kN / 15kN

The testing machine combination is suitable for compressive strength tests of gypsum, mortar- and cement samples, as well as light- and aerated concrete. The massive steel frame is extremely stiff, the columns are tensioned without any play. On both side is a simple insertion of different test fixture, inserts and devices possible. According to DIN EN 196 and class 1 according to DIN EN 7500-1.

Norms: DIN EN 196, 1015, ISO 679, BS 3892, ASTM C109, ASTM C348, C349 (and many more).

Other force ranges:

• Pressure side: 50kN, 100kN, 150kN, 200kN
• Bending side: 10kN, 20kN, 25kN, 30kN

Technical specifications compression side

• Force display range: 0 - 300 kN
• Force measuring range: 6 - 300kN, class 1
• Stroke: 60 mm
• Test chamber height: max. 210 mm
• Column spacing: Front 280 mm
• Machine platens Ø165 mm acc. to EN 196
• (Optional further machine platens dimension and fixed test inserts available)

Technical specifications bending side

• Frame type: open C-Frame
• Force display range: 0 - 15 kN
• Force measuring range: 0,3 - 15kN, class 1
• Stroke: 60 mm
• Test chamber height: max. 210 mm
• Machine platens Ø165 mm acc. to EN 196
• (Optional further machine platens dimension and fixed test inserts available)

Control Unit

Doli EDC provides fully automated experimental procedures with predetermined rate of loading force controlled tests, automatic break detection.

Dimensions

• (W x D x H) = 1200 x 570 x 1950 mm
• Weight: approx. 450 kg
• 3 ~ 400 V / 50 Hz / 1.1 kW

---

For more information or to request a quotation please contact PT Universal Labora Analitika, the official distributor of Testing GmbH Germany in Indonesia. We’re ready to support your testing needs with expert consultation and full-service assistance.
