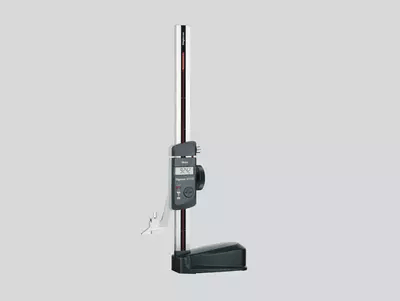

Mahr Digital Height Gage

Digimar | Digital height gage

Digimar 814 SR

FEATURES

• Up to 3 years’ battery life
• Travel speed 1.5 m/s (60”/s)
• MarConnect data output: optional
• USB
• OPTO RS232C
• Digimatic
• High contrast 12 mm high LCD display
• Sturdy, heavy-duty machine base
• Hardened and lapped contact surface which produces both a smooth and even movement
• Slide and rail are made of hardened stainless steel
• Handwheel for positioning and measuring
• Fine adjuster
• Locking screw
• Interchangeable measuring and scriber tips, carbide tipped

TECHNICAL DATA

Specification	Digimar 814 SR (4426101)
Measuring range	0 – 600 mm
Measuring range	0 – 24″ (inch)
Resolution	0.01 mm
Resolution	0.0005 inch
Error limit	50 µm
Error limit	50 (unit not specified)
Error limit	0.0020″ (inch)
Error limit	0.002 inch
Data interface	Opto RS-232C, Digimatic, USB
Product weight	8 kg
