Compression and bending testing machines for cement, mortar and gypsum

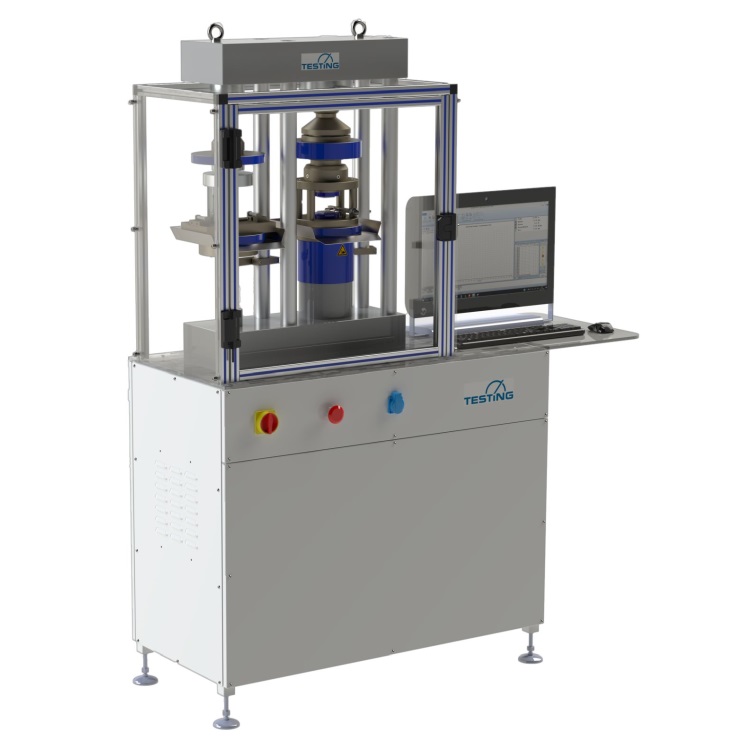

Combined Compression / Bending Testing Machine 500 kN / 30 kN

The testing machine combination is suitable for compressive strength tests of gypsum, mortar- and cement samples, as well as light- and aerated concrete. The massive steel frame is extremely stiff, the columns are tensioned without any play. On both sides is a simple insertion of different test fixture, inserts and devices possible.According to DIN EN 196 and class 1 according to DIN EN 7500-1 in expansion cylinder version.

Norms: DIN EN 196, 1015, ISO 679, BS 3892, ASTM C109, ASTM C348, C349 (and many more).

Other force ranges:

• Pressure side: 400 kN, 600 kN
• Bending side: 10 kN, 15 kN, 25 kN, 50 kN

Technical specifications compression side

• Force display range: 0 - 500 kN
• Force measuring range: 10 - 500kN, class 1
• Stroke: 60 mm
• Test chamber height: max. 210 mm
• Column spacing: Front 320 mm
• Machine platens Ø220 mm acc. to EN 196
• (Optional further machine platens dimension and fixed test inserts available)

Technical specifications bending side

• Frame type: open C-Frame
• Force display range: 0 - 30 kN
• Force measuring range: 0,6 - 30 kN, class 1
• Test chamber height: max. 210 mm
• Machine platens Ø220 mm acc. to EN 196
• (Optional further machine platens dimension and fixed test inserts available)

Control Unit

Doli EDC provides fully automated experimental procedures with predetermined rate of loading force controlled tests (deformation and displacement controlled tests require further accessories). Automatic break detection.

Safety

A large area of the testing machine is equipped with an impact-resistant, transparent test room protection made of polycarbonate.

Dimensions

(W X D X H) = 1600 x 610 x 2060 mm Weight: approx. 750 kg 3 ~ 400 V / 50 Hz - 1.1 kW

---
