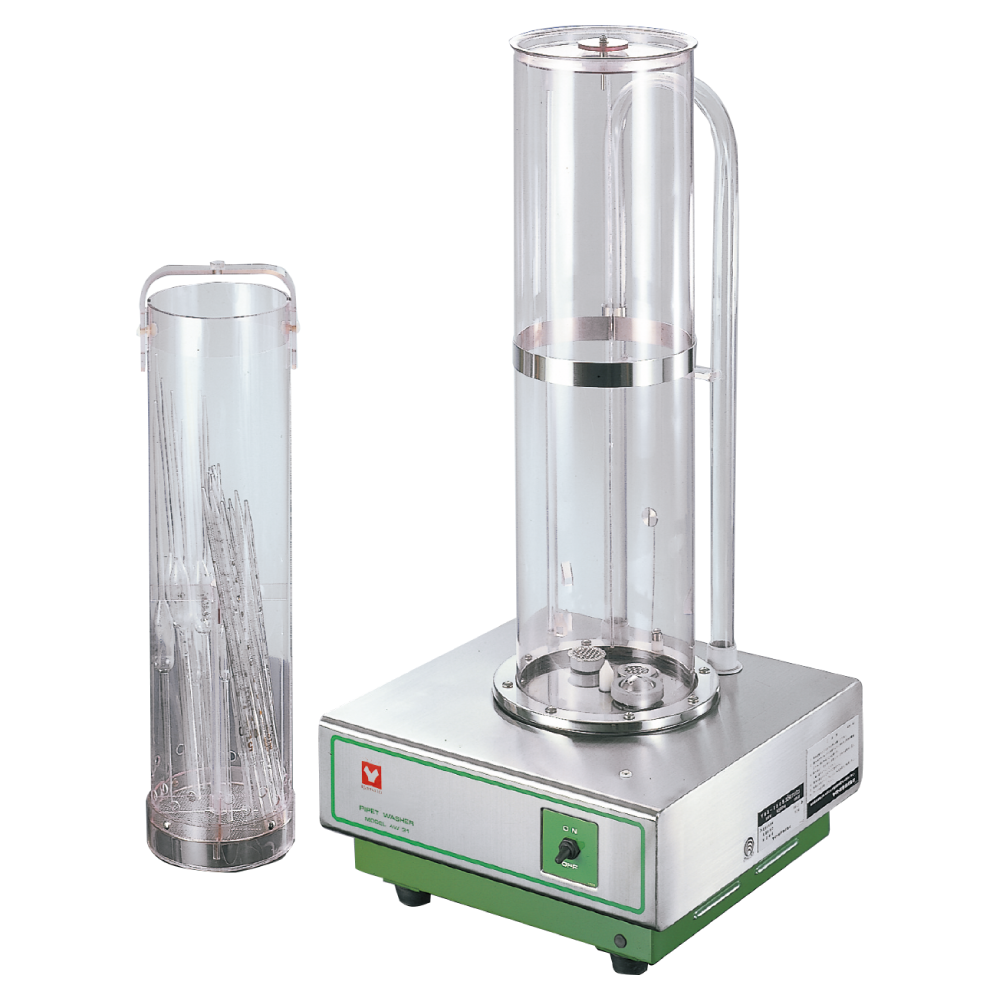

Ultrasonic Pipet Washers | Ultrasonic Cleaning, Benchtop

AW31

Powerful dual cleaning mechanism. Use siphon principle, using ultrasonic waves and detergent for powerful cleaning.

Features

• Built-in high-efficiency cleaning circulation mechanism; the contaminated cleaning liquid inside the pipet is forcibly discharged from the bottom nozzle, fully maximizing the cleaning effect and ensuring no dead angles during cleaning.
• The pipet storage frame in the washing tank maintains a certain rotational motion, allowing sufficient contact between the cleaning item and the ultrasonic waves and spray, achieving uniform cleaning results.
• The spray flow mechanism, ultrasonic generating device, rotary mechanism, and siphon mechanism are efficiently integrated with a rational and compact structural design, making it a high-performance ultrasonic cleaner specifically tailored for pipets.
• By operating and adjusting the water supply valve, the entire process from cleaning to rinsing with clean water can be completed in one washing tank.
• Water-soluble alkaline detergents can be used for cleaning, ensuring very high safety.

Specifications

Model	AW31
Pipet quantity	Mother pipet (maximum 500mm) 1ml, 264 pieces 5ml, 216 pieces 10ml, 136 pieces
Water usage	1~3L/min
Ultrasonic generating device	High frequency output 55W 28kHz Vibrating plate SUS304 stainless steel Transducer round ferrite
Chamber material	Stainless steel SUS304
Storage frame dimensions (basket)	Inner diameter φ138×height 540mm Outer diameter φ146×height 570mm
External dimensions	Width 390×Depth 400×Height 844mm
Weight	Body weight approx. 18.5kg, pipe frame approx. 1.0kg
Power supply	AC100V 50/60Hz 2A
Accessories	Frame Hand pump Water supply pipe: Inner diameter 12mm×Length 1.5m Drainage pipe: Inner diameter 25mm×Length 1.5m Detergent: 1L (low-foam alkaline detergent approx. 1kg)

---

As an authorized distributor of Yamato Scientific in Indonesia, PT Universal Labora Analitika proudly provides the full range of Yamato Scientific Products. Contact us for more detailed catalog.
