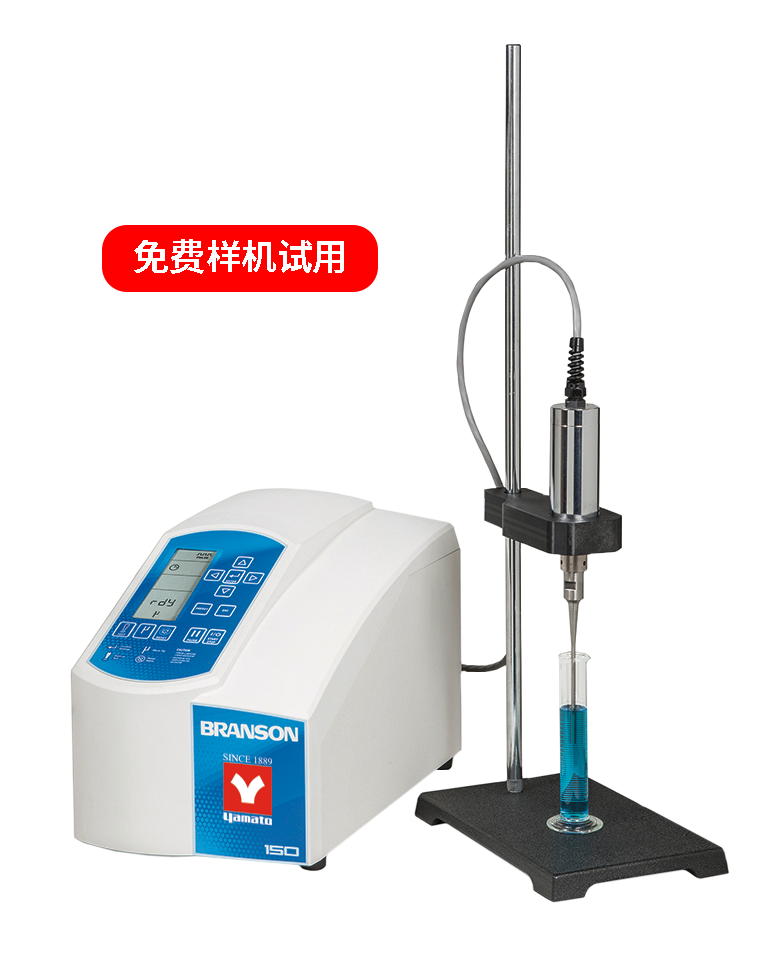

Yamato Ultrasonic Crushers

Ultrasonic Crushers/Homogenizers | Cell Destruction, Emulsification, Dispersion, Mixing

SFX150-Y·SFX250-Y·SFX550-Y

Widely used for liquid processing such as breaking nano-level biological cells, homogenization, emulsification, accelerating reactions, dispersion, mixing, degassing, etc. No need for materials like broken glass to promote reactions, reducing operating costs.

Features

• 40 kHz ultrasonic frequency, low noise, providing a comfortable operating environment. (Model 150)
• Processing volume from 0.2 ml to 150 ml, suitable for most small sample volumes. (Model 150)
• Processing volume from 0.2 ml to 500 ml (Model 250), and from 0.2 ml to 1000 ml (Model 550).
• 20 kHz ultrasonic frequency, capable of processing the vast majority of samples, with powerful performance and excellent reliability. (Model 250/550)
• Selectable continuous or pulse ultrasonic modes.
• Amplitude setting range from 10 to 100%.
• Specialized microprobe amplitude limiting mode to extend probe lifespan.
• Multifunctional button-type LCD display, easy to operate, and intuitive display.
• High-efficiency transducer with high conversion rate, does not generate heat, no need for cooling, can work continuously for a long time, providing more stable and convenient time, temperature, and energy ultrasonic modes, selectable based on sample features.
• Real-time monitoring of experimental data during the processing, including power, output energy, temperature values, and experiment progress.
• Real-time temperature monitoring system accurately responds to specific user temperature control needs. (Temperature probe required)
• It can store up to 20 sets of programs. Programmable parameters include continuous or pulse mode; time, energy, or temperature control mode; pulse ultrasonic settings for time or energy; amplitude settings; temperature settings, etc.
• Real temperature control achieved by automatically adjusting the pulse time ratio to keep the sample temperature within the user-set range (requires temperature probe).

Specifications

Specifications	SFX150-Y	SFX250-Y	SFX550-Y
Maximum output power	150W	250W	550W
Maximum energy setting	999999J	999999J	999999J
Maximum time setting	99 h 59 min 59 seconds	99 h 59 min 59 seconds	99 h 59 min 59 seconds
Minimum pulse energy setting	1J	1J	1J
Minimum pulse time setting	0.01 s	0.01 s	0.01 s
Standard frequency	40KHz	20KHz	20KHz
Standard probe	1/8" probe	1/2" (13mm) 7-4 titanium alloy	1/2" (13mm) or 3/4" (19mm) 7-4 titanium alloy
Maximum current	1A	1.5A	6A
Rated voltage	AC 200-240V at 50/60Hz	AC 200-240V at 50/60Hz	AC 200-240V at 50/60Hz
Main unit weight	6.5kg	6.5kg	6.5kg
Main unit dimensions	348L×203W×242H (mm)	348L×203W×242H (mm)	348L×203W×242H (mm)

---

As the authorized distributor of Yamato Scientific in Indonesia, PT Universal Labora Analitika is ready to support your needs—from consultation and procurement to delivery and after-sales service.
