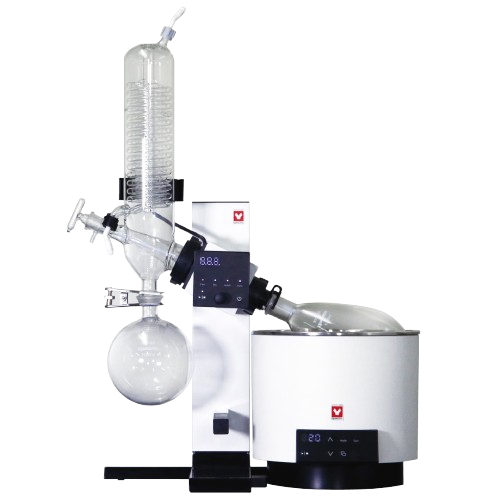

Yamato RE212 Series

Rotary Evaporator

RE202

A new design for the classic evaporator is born!

Features

• Height adjustment is easy with the jack handle: The height of the main unit is adjusted using a spring-operated jack handle. The spring is adjusted so that the force is balanced when glassware and piping are connected, allowing it to be raised and lowered with little effort. To lock/unlock the jack, simply twist the handle. It has a maximum height stroke of 200 mm, making it convenient for attaching and detaching distillation flasks.
• Glass set and bath can be rearranged to the left or right: The position of the glass set bath can be installed on either the left or right side of the main unit depending on your dominant hand and the location. It can be changed to the reverse orientation by rotating the motor box behind the operation panel. You can freely arrange it according to the limited space inside a fume hood or on a laboratory bench. Three vertical glass sets type B can be placed inside a fume hood.
• Intuitive operability and wide range of RPM settings possible: The device is operated using the operation panel in the center. Turning the encoder (knob) slowly changes the rotation speed display by 1, and turning it quickly changes it by 10. The rotation speed can be set in a wide range (low to high speed) from 5 to 315 rpm. After confirming the rotation speed, press the ▶｜■ key to rotate the distillation flask. The rotation mode can be selected from forward rotation, reverse rotation, and automatic reversal that repeats forward ⇆ reverse rotation for a set time.
• Improved durability of vacuum seal with liquid accumulation prevention structure: To prevent condensate that accumulates in the cooling tube from running down the inside and entering the vacuum seal, a fold (structure to prevent liquid accumulation) is provided just before the vacuum seal inside the cooling tube. By preventing backflow into the vacuum seal, the durability of the vacuum seal has been improved. If you frequently use samples that contain organic solvents, please use the PTFE vacuum seal (sold separately).
• Two types of bathtubs that are easy to maintain: Two types of baths are available: water baths and oil baths (for both water and oil). They are large capacity 5L sizes with external dimensions of φ262mm and internal dimensions of φ240mm. There are no heaters or sensors inside the baths, and they are flat, making them easy to clean. They are equipped with safety features such as automatic overheat prevention, upper temperature limit abnormality, and independent overheat prevention (fixed temperature).
• Bath cover (optional): To prevent hot water, oil splashing, and clothing from getting caught.
• Cooling pipe insulation is included as standard (common to glass sets A and B): The glass set comes standard with an insulating material to prevent condensation on the cooling pipe surface. Please use it together with the nozzle insulating material. It is also possible to purchase it as an optional item.
• The sample introduction tube cover prevents backflow of condensate (Glass Set B) (Patent No. 7209346): A sample introduction tube cover was installed inside the cooling tube to prevent the condensate in the cooling tube from flowing back up the sample introduction tube into the distillation flask. It is shaped to cover the sample introduction tube from above, and an extremely complex structure was achieved with a glass cover mounted inside the glass tube.
• Linked functions with vacuum controller VR102S: It is linked to and controls the vacuum controller VR102S (sold separately). Power can also be supplied from the RE202 using a dedicated cable.

Specifications:

Specification	RE202
Product Code	255352
Model	RE202
Type	RE202A: Rotary evaporator horizontal type A RE202B: Rotary evaporator vertical type B
Cooling Pipe	RE202A: Double-wound coil (cooling surface area: approx. 0.143 m², with insulation), Vacuum seal (FKM, one side PTFE finish) RE202B: Vertical double-wound coil (cooling surface area: approx. 0.143 m², with insulation), Vacuum seal (FKM, one side PTFE finish)
Rotary Joint	RE202A: TS29/38 Inner diameter φ18 × L284mm RE202B: TS29/38 Inner diameter φ18 × L208mm
Flasks	Evaporation flask (TS29/38, 1L) and clip (POM), receiving flask (S35, 1L), and ball joint clamp (SUS)
Motor	DC Brushless
Connection Nozzle Diameter	Outer diameter φ10mm (cooling water/vacuum)
Rotational Speed Range	5 to 315 rpm, Encoder type digital setting and display
Jack	Manual balance type (200mm stepless adjustment, lock/unlock by rotating 90°)
Flask Evaporation Capacity	~23mL/min (water evaporation rate)
Safety Features	Motor stop function when overloaded, overcurrent protection, overvoltage protection
Other Features	Forward/reverse/automatic reverse switching by timer, power failure recovery (mode selection type)
Suitable Evaporation Flask	TS29 50 to 2000mL (JIS standard)
Suitable Receiving Flask	100 to 2000mL
Accessories (Main Unit)	Instruction manual, warranty card, AC adapter, power cord (approx. 2m), bus guide, back cover, Velcro tape (single-sided and double-sided), cooling tube holder, hexagonal wrench
Accessories (Glass Set)	Warranty, flask clip, receiving flask clip, vacuum seal, flask pusher (for TS29), cooling pipe insulation
External Dimensions (W × D)	719 × 324mm
Remarks (Dimensions)	RE202A: Height 534mm (Jack at highest position: 734mm) RE202B: Width 529 × Depth 324 × Height 745mm (Jack at highest position: 945mm)
Power Capacity	100V 15A to 230V (AC100V 15A plug included)
Current Value	1A
Weight	9kg
Remarks (Weight)	Rotary evaporator body: approx. 7kg + glass set: approx. 2kg

---
