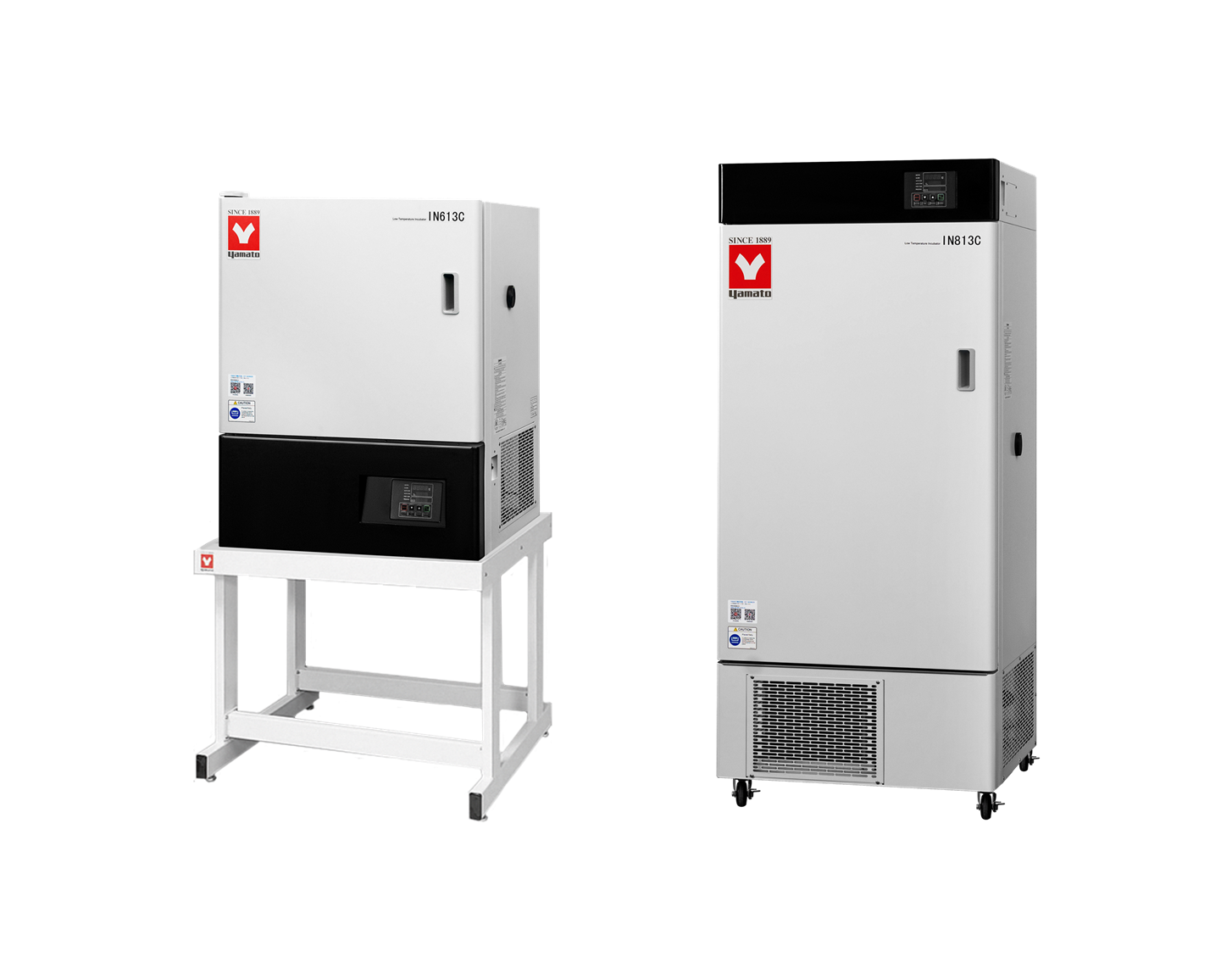

Yamato IN Series

Low-temp. Incubators | Program Operations

IN613C/613CW/813C/913C

Widely applicable for various constant temperature tests and environmental experiments.

Features

• Widely applicable for various constant temperature tests and environmental tests.
• Achieved high precision temperature control and balanced internal chamber temperature distribution through forced circulation by a fan blade.
• The outer door uses a large hollow glass and thickened tempered glass viewing window structure design, better observation of the interior while improving insulation. (IN613CW type)
• The inner glass door enhances the insulation effect. Observing the sample through the inner glass door minimizes temperature changes.
• Defrosting can be set to cycle defrost based on the continuous operation time of the compressor.
• After power outage recovery, the operation can automatically restart under set temperature conditions through the power outage compensation function.
• Equipped with safety functions such as compressor overload relay, overheat prevention device, overcurrent leakage protection switch, self diagnostic circuit (temperature sensor anomaly, heater disconnection, SSR short circuit, automatic overheat prevention), and buzzer alarm during anomalies.

Common Specifications

Specifications	IN Series
System	Forced convection
Operating temp. range	-10~60℃
Temp. fluctuation	±0.5℃
Temp. uniformity	≤2.0℃ (at 37℃), ≤3.0℃ (other working temperatures)
Heating time	20→52℃ ≤20min
Cooling time	20→-4℃ ≤60min
Interior material	Stainless steel plate
Exterior material	Cold rolled steel plate with chemical proofing coating
Refrigerant	R134A
Defrost structure	Cycle operation
Fan blade	Crossflow fan
Sensors	Temperature regulator: Pt thermal resistor, for overheat protection: K-type thermocouple
Temp. control method	PID control
Temp. setting method	Use special function menu keys and up/down keys to realize digital setting
Temp. display method	Achieved temp. display: Green 4-digit LED digital display Setting temp. display: Red 4-digit LED
Timer/timer resolution	1 min–99 h 59 min or 100–999 h 50 min
Operating functions	Fixed temp. operation, auto start, auto stop, program operation
Program mode	Program operation 6 modes with total of 90 segments (30×1, 15×2, 10×3)
Additional functions	Temperature compensation function, key lock function, power outage compensation function
Safety device	Compressor overload relay, overheat prevention device, overcurrent leakage protection switch, self-diagnostic circuit (temperature sensor anomaly, heater disconnection, SSR short circuit, automatic overheat prevention), buzzer alarm during anomalies

Difference Between Models

Specifications	IN613C / IN613CW	IN813C	IN913C
Refrigerator	158W	300W	519W
Heater	Nickel-chromium alloy heating wire, 550W	Nickel-chromium alloy heating wire, 750W	Nickel-chromium alloy heating wire, 750W×2
Internal dimensions (W×D×H mm)	600×477×500	600×477×1000	1310×477×1000
External dimensions (W×D×H mm)	710×645×915	710×645×1630	1420×645×1630
Internal capacity	143L	286L	624L
Power supply (50/60Hz) rated current	AC220V 50Hz 3.5A	AC220V 50Hz 5A	AC220V 10A
Weight	Approx. 89kg	Approx. 115kg	Approx. 230kg
Shelf	3 pcs	5 pcs	8 pcs
Supports	6 pcs	10 pcs	16 pcs

---

As the official distributor of Yamato Scientific in Indonesia, PT Universal Labora Analitika is committed to providing reliable incubator solutions, along with technical consultation, delivery, and full after-sales support.
