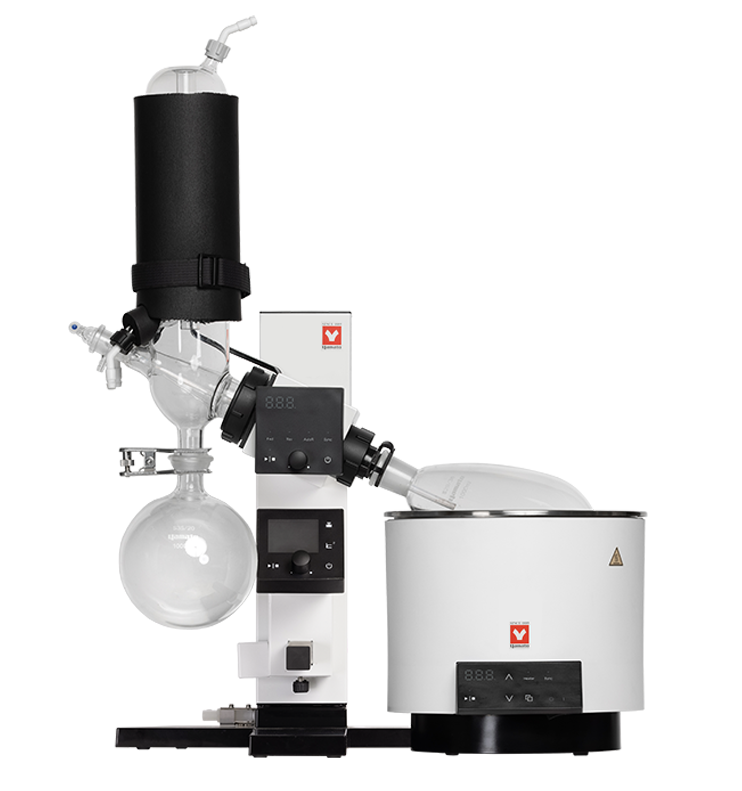

Yamato REV212M Series

Rotary evaporator (with vacuum controller)

REV202M

A rotary evaporator that is easy to use thanks to its integration with the vacuum controller VR102S

Features

• Rotary evaporator with integrated vacuum controller: This space-saving design integrates the vacuum controller VR102S and rotary evaporator RE202. The vacuum controller is linked to the evaporator controller, so start/stop can be done with a single operation. It also has a built-in solenoid valve for precise vacuum control. The vacuum controller has three operation modes (constant value operation, gradient operation, auto mode operation) depending on the application. Auto mode is particularly effective for unknown samples, as it automatically calculates and controls operation to prevent bumping.
• Wireless link with vacuum pump via Wi-Fi connection: The vacuum pump's RUN/STOP and suction speed adjustment are wirelessly controlled by the vacuum controller. The vacuum pump does not need to run at full power all the time; it runs at full power only at the beginning of the distillation, and then the inverter reduces the rotation speed (N820G), making the pump quieter and contributing to energy-saving operation.
• Auto Leak Operation: When the operation is stopped, the leak solenoid valve is opened and released to the atmosphere until the set time has elapsed.
• Auto Cleaning Operation: After the auto leak ends, the vacuum pump is operated with the leak solenoid valve and control solenoid valve open until the set time has elapsed. The purpose of running the pump at atmospheric pressure is to remove the solvent that has condensed in the piping and solenoid valve, and at the same time clean the vacuum pump itself. When finished, the pump stops and the leak valve and solenoid valve close, which is a convenient function. (The vacuum pump stops when a control unit is installed.)
• Solvent recovery device can also be installed: A solvent recovery device can be attached to the stand (optional) as a secondary trap. This is effective for environmental and odor control. The vacuum controller operation section is integrated on the rotary evaporator side, allowing greater freedom in layout.
• REV202M's extensive options: We also offer a wide variety of flasks and PTFE vacuum seals. Contact us for the details.
• Bath cover (optional): to prevent hot water, oil splashing, and clothing from getting caught

Product Specifications – REV202M Rotary Evaporator

Model	REV212M
Product Code	255427
Model	REV202M
Type	RE202MA: Horizontal Type Rotary Evaporator RE202MB: Vertical Type Rotary Evaporator
Condenser	REV202MA: Double coiled condenser (Cooling area: approx. 0.143 m², with thermal insulation), Vacuum seal (FKM, one side PTFE finish) REV202MB: Vertical double coiled condenser (Cooling area: approx. 0.143 m², with thermal insulation), Vacuum seal (FKM, one side PTFE finish)
Rotary Joint	REV202MA: TS29/38, Inner diameter φ18 × L284mm REV202MB: TS29/38, Inner diameter φ18 × L208mm
Flasks	Evaporation flask (TS29/38, 1L) with clip (POM), Receiving flask (S35, 1L) with ball joint clamp (SUS)
Motor	DC Brushless
Connection Nozzle Diameter	Outer diameter φ10mm (for cooling water and vacuum)
Rotation Speed Range	5 – 315 rpm, encoder-based digital setting & display
Jack	Manual balance type (200mm stepless adjustment, fixed/released by 90° rotation)
Evaporation Capacity	Up to 23 mL/min (water evaporation)
Safety Functions	Motor stop on overload, overcurrent protection, overvoltage protection
Additional Functions	Forward/reverse rotation with timer auto-reverse switch, power failure recovery (mode selectable)
Compatible Evaporation Flasks	TS29, 50 – 2000mL (JIS standard)
Compatible Receiving Flasks	100 – 2000mL
Accessories – Main Unit	User manual, warranty card, AC adapter, power cord (approx. 2m), bath guide, back cover, Velcro straps (single & double-sided), condenser holder, hex wrench
Accessories – Glass Set	Warranty card, flask clip, receiving flask clip, vacuum seal, flask pusher (for TS29), condenser insulation
Dimensions (W × D)	719 × 324mm
Remarks (Dimensions)	REV202MA: Height 534mm (jack max height: 734mm) REV202MB: W529 × D324 × H745mm (jack max height: 945mm)
Power Supply	100V 15A to 230V (with AC100V 15A plug)
Current Consumption	1A
Weight	10.5kg
Remarks (Weight)	Rotary evaporator unit: approx. 7kg Glass set: approx. 2kg Vacuum controller with mounting bracket: approx. 1.5kg

---
