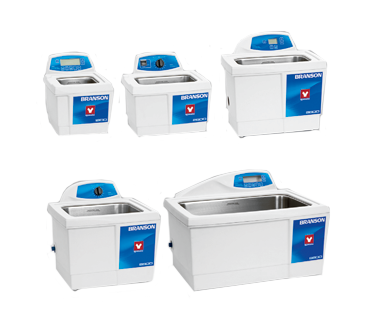

Yamato Ultrasonic Washer

Ultrasonic Washers | Benchtop Type

M-Y·MH-Y·CPX-Y·CPXH-Y

Spherical waves, powerfull and uniform ultrasonic vibrations ensure no blind spots in cleaning. In addition to degreasing and removing adhesive substances, it can also be used for dispersing, dissolving, and extracting applications.

Features

• Quality Assurance: High equipment reliability with a failure rate of only 0.6%.
• Cleaning Effect
  • Feedback load variation ensures consistently stable and uniform operation.
  • Different applications can switch between HI and LO power. (CPX-Y, CPXH-Y) .
  • Uniformly generated ultrasound can be used for dispersing and dissolving applications.
• Alarm Function: Equipped with an alarm function to ensure equipment performance. （CPX-Y, CPXH-Y)
• Waterproof Effect: Control panel located at the top, vibration board set vertically to improve waterproof effect.
• Sweep Function: The frequency fluctuates periodically within a range of ±1,000Hz for uniform cleaning.
• Degassing Function: New cleaning fluid contains gases (mainly air) that affect the cleaning effect; removing them improves the ultrasonic cleaning effect. CPX-Y/CPXH-Y models come standard with degassing function; for M-Y/MH-Y models, operate the ultrasound for 5~10 min before cleaning when replacing cleaning fluid to achieve the same effect.
• Spherical Wave Technology: Using a separate vibrator to generate spherical waves in the liquid, it achieves powerful and uniform cleaning throughout the chamber.

Common Specification

Spesifikasi	Detail
Baths	Stainless steel SUS304
Power supply	AC220V 50/60Hz
Power supply line	1.5m with plug
Accessories	Stainless steel tray Water bath cover (1800/2800/3800/5800: resin; 8800: stainless steel)

Difference Between Model

Model	Function	Dimensions (mm) (L×W×H)	Water tank dimensions (mm) (L×W×H)	Capacity (L)	Weight (kg)	Ultrasonic (W)	Heater (W)	Current (A)
M1800J-Y	Mechanical timer (5-min increments 0–60 min, continuous mode)	251×302×303	150×137×100	1.9	3.5	70	None	0.9
M1800H-Y	Mechanical timer (5-min increments 0–60 min, continuous mode, heating switch)	251×302×303	150×137×100	1.9	4.5	70	100	1.35
CPX1800H-Y	Digital timer (1–99 min, continuous mode), degassing mode, power HI/LO switching	251×302×303	150×137×100	1.9	5.0	70	100	1.35
M2800J-Y	Mechanical timer (5-min increments 0–60 min, continuous mode)	336×305×304	238×138×100	2.8	4.4	110	None	1.3
M2800H-Y	Mechanical timer (5-min increments 0–60 min, continuous mode, heating switch)	336×305×304	238×138×100	2.8	5.4	110	100	1.95
CPX2800H-Y	Digital timer (1–99 min, continuous mode), heating adjustment (room temp–69℃), degassing mode, power HI/LO switching, AUTO mode	336×305×304	238×138×100	2.8	6.2	110	100	1.95
M3800J-Y	Mechanical timer (5-min increments 0–60 min, continuous mode)	397×318×381	297×152×150	5.7	5.9	150	None	2.75
M3800H-Y	Mechanical timer (5-min increments 0–60 min, continuous mode, heating switch)	397×318×381	297×152×150	5.7	6.9	150	200	3.1
CPX3800H-Y	Digital timer (1–99 min, continuous mode), heating adjustment (room temp–69℃), degassing mode, power HI/LO switching, AUTO mode	397×318×381	297×152×150	5.7	7.8	150	200	3.1
M5800J-Y	Mechanical timer (5-min increments 0–60 min, continuous mode)	398×398×381| 301×240×150	9.5	6.9	200	None	2.6
M5800H-Y	Mechanical timer (5-min increments 0–60 min, continuous mode, heating switch)	398×398×381	301×240×150	9.5	7.9	200	400	4.0
CPX5800H-Y	Digital timer (1–99 min, continuous mode), heating adjustment (room temp–69℃), degassing mode, power HI/LO switching, AUTO mode	398×398×381	301×240×150	9.5	8.8	200	400	4.0
M8800H-Y	Mechanical timer (5-min increments 0–60 min, continuous mode, heating switch)	596×466×391	495×292×150	20.8	11.9	280	400	7.6
CPX8800H-Y	Digital timer (1–99 min, continuous mode), heating adjustment (room temp–69℃), degassing mode, power HI/LO switching, AUTO mode	596×466×391	495×292×150	20.8	12.8	280	400	7.6
