Fume Hoods | Standard

LDS

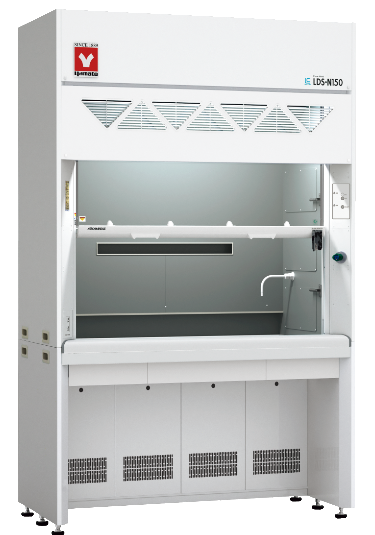

Constant air volume exhaust, standard type fume hood.

As part of the laboratory equipment series, it improves operational efficiency when used in combination with frequently used machines in the fume hood. For better operability, various optional items are also prepared. Moreover, the operation parts are set on the sloping surfaces on both sides of the upper part, which is more convenient for operation.

• The main body is made of all-steel with a chemical-resistant coating, sturdy, and fire-resistant.
• The interior uses special asbestos-free boards with good chemical and heat resistance.
• The material of the working surface can be selected according to the purpose.
• The front wind speed and exhaust air volume can be displayed with a simple digital anemometer (optional ).
• Laboratory series storage machine units can be set in the lower part.
• It effectively exhausts harmful gases inside the fume hood, utilizing a new baffle structure.
• Standard equipment includes a door drop prevention structure and an exhaust delay timer. The safety of the operator is a top priority.
• Sockets and switches are installed at an easy-to-operate height.
• Considering the gas exhaust and heat dissipation of the lower part, it is also equipped with a ventilation function (for machine settings)

Common Specifications

Specification	LDS Series
Exterior material	Cold-rolled steel plate, surface chemical-resistant powder coating
Interior material	Special asbestos-free board
Working surface (selection)	Ceramic (S), ceramic steel plate (K)
Glass door	Reinforced glass, 6mm thick, weight-balanced type
Water faucet	1 pc
Socket	AC220V 10A, 2 pcs
Fluorescent lamp	One 30W for 120/150 type, one 40W for 180 type
Safety mechanism	Door drop prevention stopper, exhaust delay timer, exhaust fan operation monitor

Difference Between Model

Model	LDS-120	LDS-150	LDS-180
External Dimentions (Depth x Height x Width)	750 x 2400 x 1200 mm	750 x 2400 x 1500 mm	750 x 2400 x 1800 mm
Weight	Approx. 290Kg	Approx. 330Kg	Approx. 370Kg
Exhaust Air Volume Door opening surface wind speed: 0.5 m/s when the door is half-open	12 m³/min	16 m³/min	19 m³/min
Internal static pressure (recommended value)	30 Pa (3 mmH₂O)	59 Pa (6 mmH₂O)	79 Pa (8 mmH₂O)

---

As the authorized distributor of Yamato Scientific in Indonesia, PT Universal Labora Analitika provides trusted solutions for laboratory safety and performance. Our team is ready to support your procurement process from technical consultation and equipment selection to timely delivery and responsive after-sales service.
