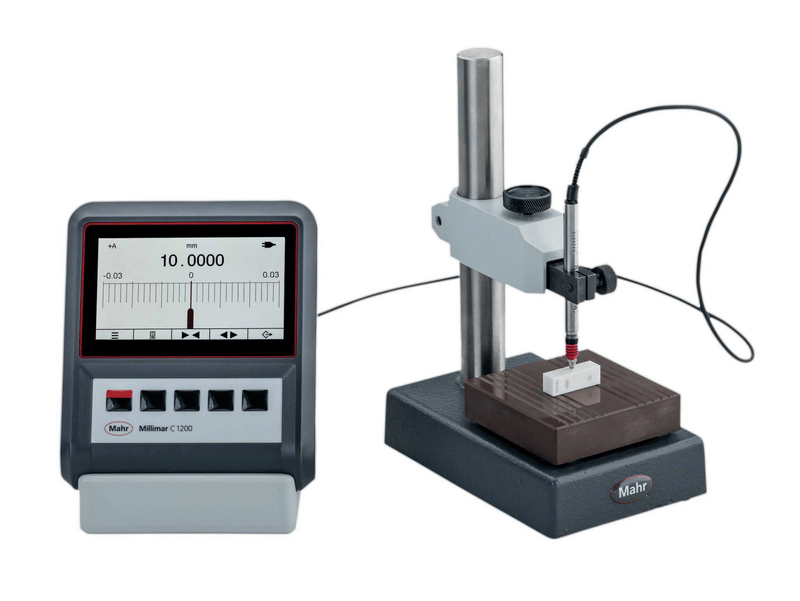

Mahr Indication and Evaluation Instrument

Millimar C 1200 T / C 1200 M

Compact amplifier

FUNCTIONS

• ON/OFF
• mm/inch
• Reversal of counting direction
• Selectable measuring range
• MAX/MIN memory for searching the reversal point
• MAX-MIN for testing flatness and concentricity
• TOL (enter tolerance limit values)
• PRESET (for entering a numerical value)
• Selectable resolution
• Factor (adjustable)
• DATA (data transmission)
• Menu interlock
• M for inductive probes with the compatibility M
• T for inductive probes with the compatibility T

FEATURES

• High-resolution, high-contrast color display
• Fully adjustable display for ideal viewing angle
• Extremely easy to operate
• Suitable for power source or battery operation
• Suitable for mobile use with battery operation
• Compact housing
• Suitable for wall mounting
• Battery type: 5 x LR6 (1.5V Mignon AA) possible
• Package contains: power source, instruction manual
• Software: MarCom Professional free download: www.mahr.com/ marcom (only for Mahr data cables and wireless systems with USB and RS– 232 interface)

TECHNICAL DATA

Order no.	5312011 and 5312012
Type	C 1200 T (5312011) / C 1200 M (5312012)
Display	TFT color display, 110 mm (4.3"), 480 × 272 pixels
Range of digital display (µm)	± 5000
Range of digital display (inch)	± .19″
Range of analog display (µm)	± 5000, ± 2000, ± 1000, ± 300, ± 100, ± 30, ± 10, ± 3
Range of analog display (inch)	± .19″, ± .07″, ± .03″, ± .01″, ± .003″, ± .001″, ± .0003″, ± .0001″
Resolution (µm)	0.1
Resolution (inch)	.000005″
Scale graduation value (µm)	500, 200, 100, 20, 10, 2, 1, 0.2
Scale graduation value (inch)	.019″, .007″, .002″, .001″, .0002″, .0001″, .00002″, .00001″ (inch)
Probe inputs	1
Compatibility	Tesa (5312011) and Mahr (5312012)
Measuring combination	+A, -A
Features	1
Dynamic functions	Max, Min, Max-Min
Configuration	Keyboard
Data transmission rate (Hz)	30
Refresh rate (fps)	40
Error limit, digital display	0.3% (min. 0.2 µm)
Error limit, analog display	0.25% of the end scale value / 0.3% of the displayed value
Data interface	Opto RS–232C, USB, Digimatic, wireless
Energy supply	Power source, 230 V/115 V; 50/60 Hz, battery operation
IP protection category	IP 42
