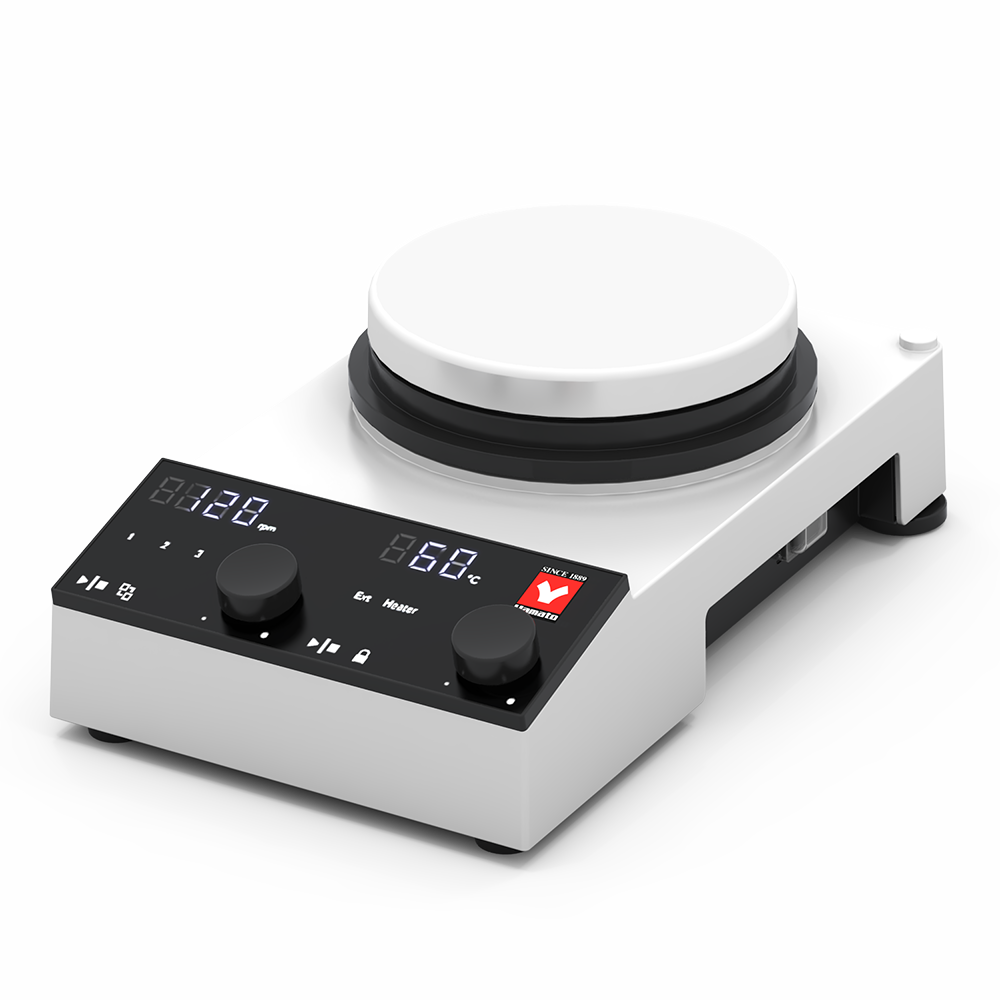

Yamato Magnetic Stirrer MFH810-B

Magnetic Stirrers | Magnetic Stirring with Heating Function

MFH810-B

Magnetic stirring with heating function.

Features

• Due to strong magnetic force, even when moving the flask, stirring continues. The magnetic stirrer continues stirring even when separated from the stirring table.
• Obtained a patent for aluminum block thermostatic bath.
• Multiple aluminum block systems available.
• Feature a decoupling detection mode (stir bar detachment detection), which allows it to resume if the stir bar detaches from the container upon detection.
• When used with the dedicated oil bath BOG/BOS series, the recessed bottom of the oil bath can be embedded in the top of the MFH810-B to prevent the risk of displacement and falling due to vibration.
• Rich and convenient rotation functions.
• The stirring table (hot plate) is designed to be heat-resistant and chemical-resistant.

Specifications

Specifications	MFH810-B
Hot Plates	Yes
Speed Range	50~1600rpm (set in 10rpm increments)
Temp. control range	Room Temperature +25℃~310℃ (set in 1℃ increments)
Temp. adjusting accuracy	±1.5℃ at 100℃ (internal temperature sensor); ±1.0℃ at 50℃ (external temperature sensor)
Display	White led digital display
Motor	DC brushless motor (31W)
Magnet used	Neodymium magnet
Temp. control method	PID control
Temp. sensor	PT100
Heater	600W Mica heater
Exterior material	Aluminum die-casting
Stirring table	Aluminum die-casting (ceramic coating)
Stirring motor functions (rotation modes)	Constant speed, decoupling detection, intermittent, reverse, slow ramp
Safety functions	Overcurrent fuse
Other functions	Service socket
External dimensions (L×D×H)	165×275×90mm stirring table diameter Φ135mm
Load capacity	Less than 30kg
Power supply	220V±5% 3A 50Hz
Overcurrent fuse capacity	For internal circuit: 7A for service outlet: 5A
Power supply line	2m insert type FG plug
Weight	Approx. 3.0kg
Usage environment temp. range	4~40℃
Included accessories	Heat cut plate 1pc, protection cover 1pc, screw caps 2pcs, power cable 1pc, spare fuse (for internal circuit, service outlet) 1pc each, instruction manual 1 copy, warranty card 1 copy, external temperature sensor 1pc

*Power Supply AC 220V±5%, Room Temperature 23℃±5℃, Humidity 65% RH±20%, when using internal sensor without load, when using external temperature sensor value is inserted into the optional aluminum block. At room temperature 23℃, speed 1600rpm (maximum condition) self-heating value. Excluding protruding parts. This product does not include a stir bar.

---
